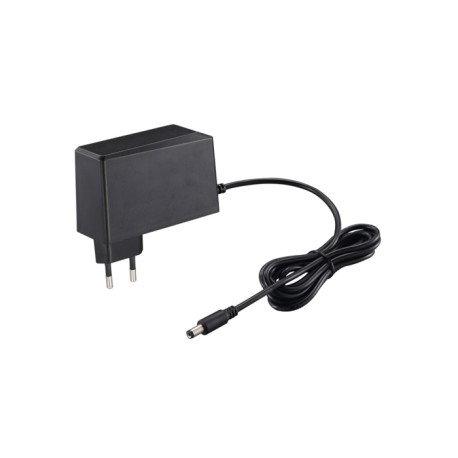

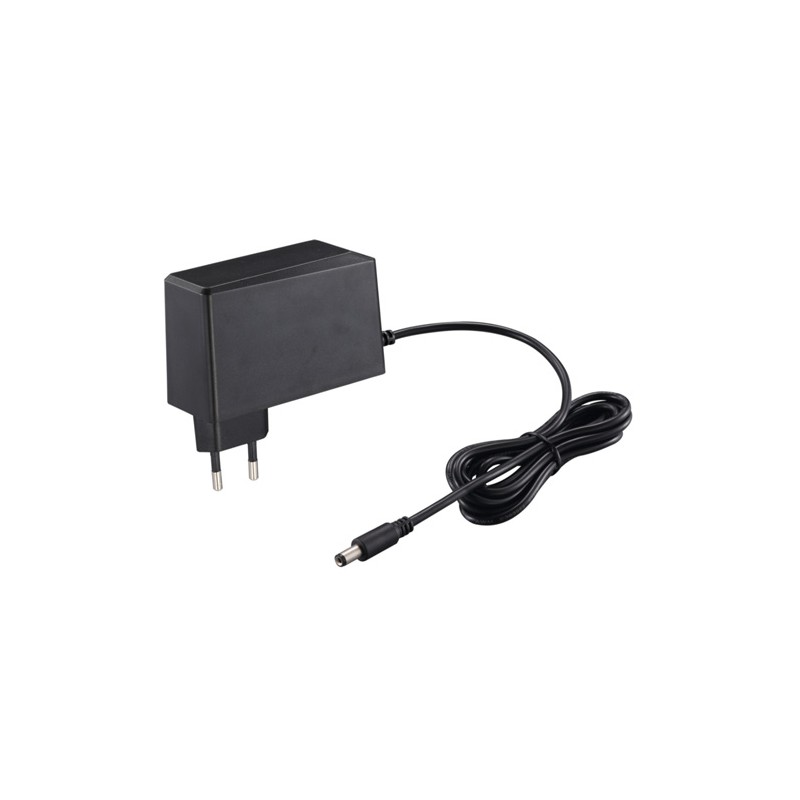

YS35V-1205000

Yingjiao plug-in power supply series YS35V

Plug-in switching power supplies in a compact housing with 60W, a universal input, a Europlug, protection class II and energy efficiency Level VI. These devices are inexpensive and are protected against overload, short circuit as well as overvoltage. They have a very low leakage current (<0,25mA) and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Yingjiao series: YS35V-1205000 and YS35V-2402500.

  • single output
  • output: 60W
  • input voltage: 100 to 240V AC (50 to 60Hz)
  • maximal input inrush current: 130A
  • input current: 1,3A
  • input plug: Euro
  • output plug: 5,5x2,1mm coaxial connector
  • operating temperature: -20 to +50°C
  • dimensions: 90x36x54mm
  • weight: 330g
YS35V-1205000, Yingjiao plug-in switching power supplies, 60W, energy efficiency Level VI, YS35V series

YS35V-1205000

252835 YS35V-1205000 YS35V-1205000 Yingjiao plug-in power supply series YS35V. Plug-in switching power supplies in a compact housing with 60W, a universal input, a Europlug, protection class II and energy efficiency Level VI. These devices are inexpensive and are protected against overload, short circuit as well as overvoltage. They have a very low leakage current (&lt;0,25mA) and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Yingjiao series: YS35V-1205000 and YS35V-2402500. single output output: 60W input voltage: 100 to 240V AC (50 to 60Hz) maximal input inrush current: 130A input current: 1,3A input plug: Euro output plug: 5,5x2,1mm coaxial connector operating temperature: -20 to +50°C dimensions: 90x36x54mm weight: 330g

Specifications

manufacturer
Manufacturer's name YS35V-1205000
Output voltage [V] 12
Efficiency [%] 88
Output current [A] 5

Unit price

12,59 €

Volume discounts

Quantity Unit price
100 + 11,39 €

Stock: 265
Next incoming goods:
CW 04/2026
500 units

Further delivery:
CW 18/2026
