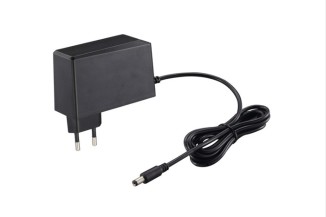

Yingjiao plug-in power supply series YS35V

Plug-in switching power supplies in a compact housing with 60W, a universal input, a Europlug, protection class II and energy efficiency Level VI. These devices are inexpensive and are protected against overload, short circuit as well as overvoltage. They have a very low leakage current (<0,25mA) and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Yingjiao series: YS35V-1205000 and YS35V-2402500.

single output
output: 60W
input voltage: 100 to 240V AC (50 to 60Hz)
maximal input inrush current: 130A
input current: 1,3A
input plug: Euro
output plug: 5,5x2,1mm coaxial connector
operating temperature: -20 to +50°C
dimensions: 90x36x54mm
weight: 330g
