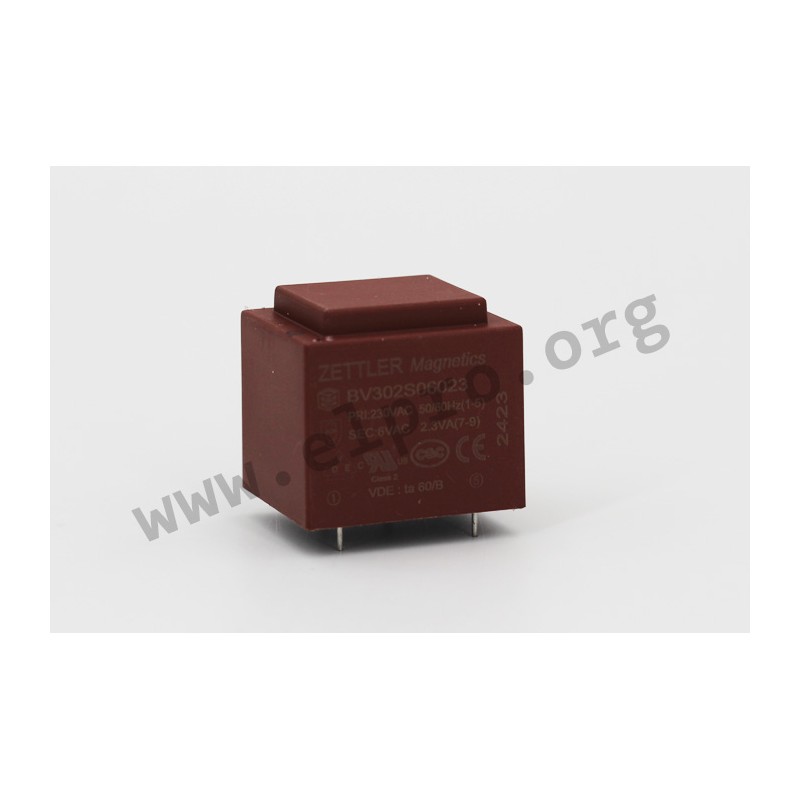

BV302S06023

Zettler PCB transformers

Transformers with 2,3VA and an EI30 core. These devices are short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting as well as for an operating temperature of up to +70°C. We offer the following types of this Zettler series: BV302S06023, BV302S09023, BV302S12023, BV302S15023, BV302S18023 and BV302S24023.

  • core: EI30
  • output: 2,3VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/B
  • dielectric strength: 4,2kV
  • insulation resistance: 100MOhm

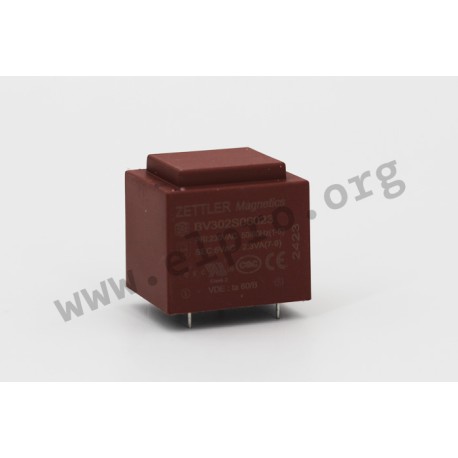

BV302S06023, Zettler PCB transformers, 2,3VA, EI 30

BV302S06023

237905 BV302S06023 BV302S06023 Zettler PCB transformers. Transformers with 2,3VA and an EI30 core. These devices are short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting as well as for an operating temperature of up to +70°C. We offer the following types of this Zettler series: BV302S06023, BV302S09023, BV302S12023, BV302S15023, BV302S18023 and BV302S24023. core: EI30 output: 2,3VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/B dielectric strength: 4,2kV insulation resistance: 100MOhm

Specifications

manufacturer
Manufacturer's name BV302S06023
Secondary current [mA] 383
Secondary voltage [V] 6
Data Sheet

Unit price

1,55 €

Stock: 150
Further delivery:
CW 40/2024
