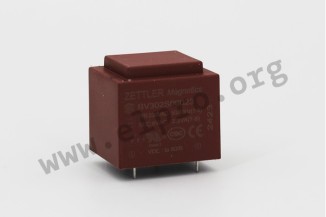

Zettler PCB transformers

Transformers with 2,3VA and an EI30 core. These devices are short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting as well as for an operating temperature of up to +70°...

Zettler PCB transformers

Transformers with 2,3VA and an EI30 core. These devices are short circuit proof and comply with temperature resistance class Ta 70/B. They are suitable for PCB mounting as well as for an operating temperature of up to +70°C. We offer the following types of this Zettler series: BV302S06023, BV302S09023, BV302S12023, BV302S15023, BV302S18023 and BV302S24023.

  • core: EI30
  • output: 2,3VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/B
  • dielectric strength: 4,2kV
  • insulation resistance: 100MOhm
> More
Data Sheet
