ZPL20S1200WL

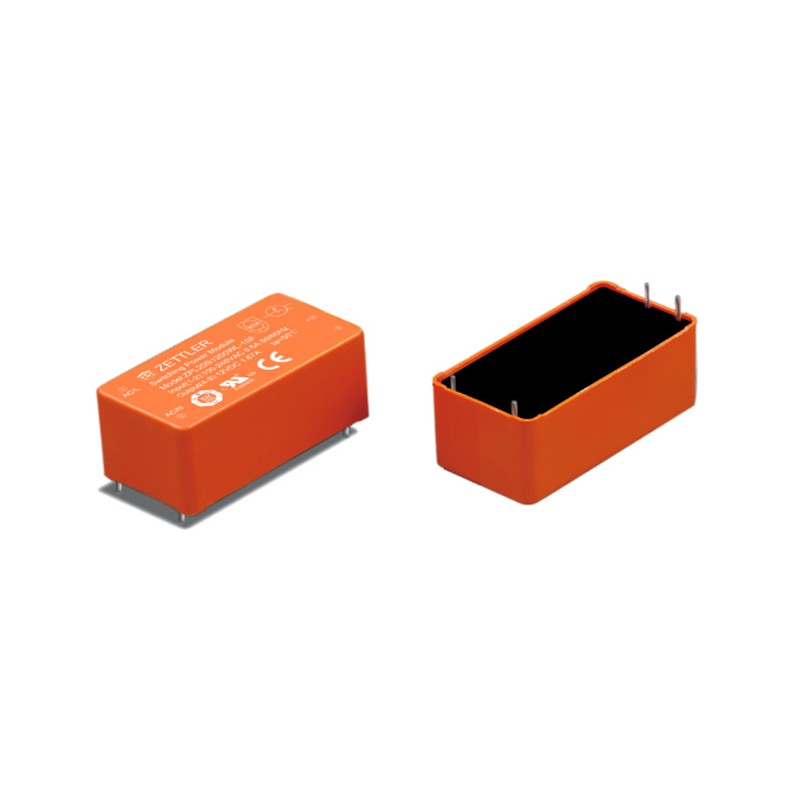

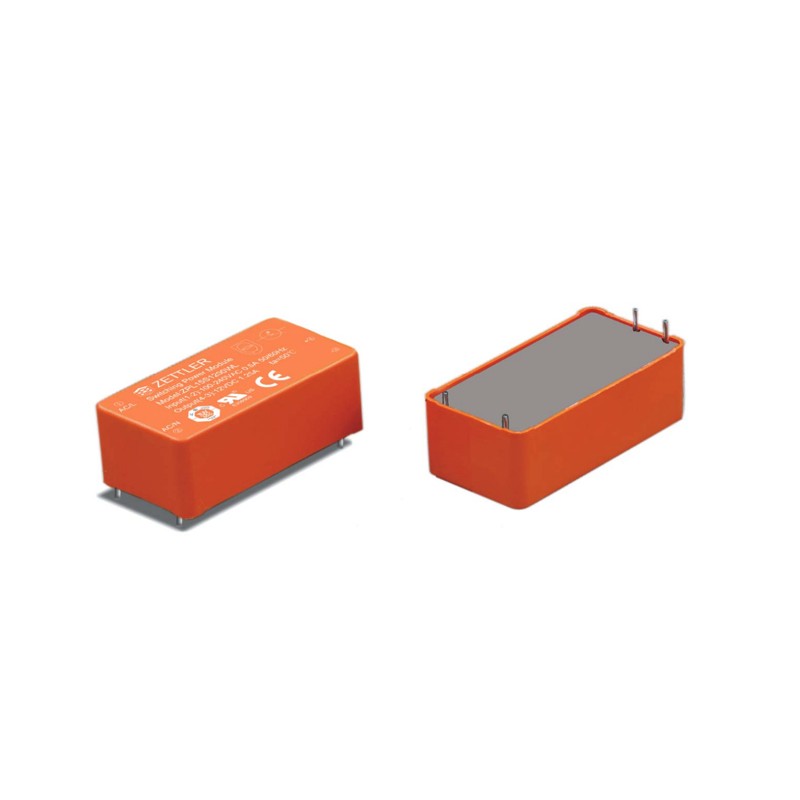

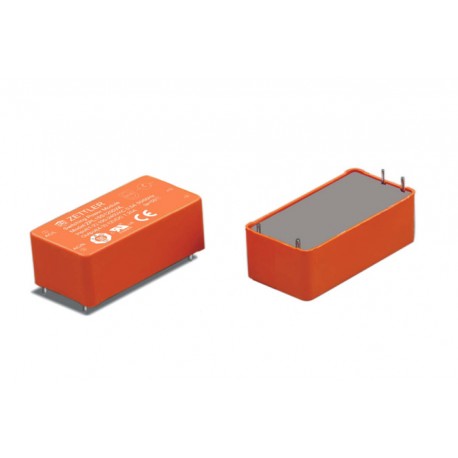

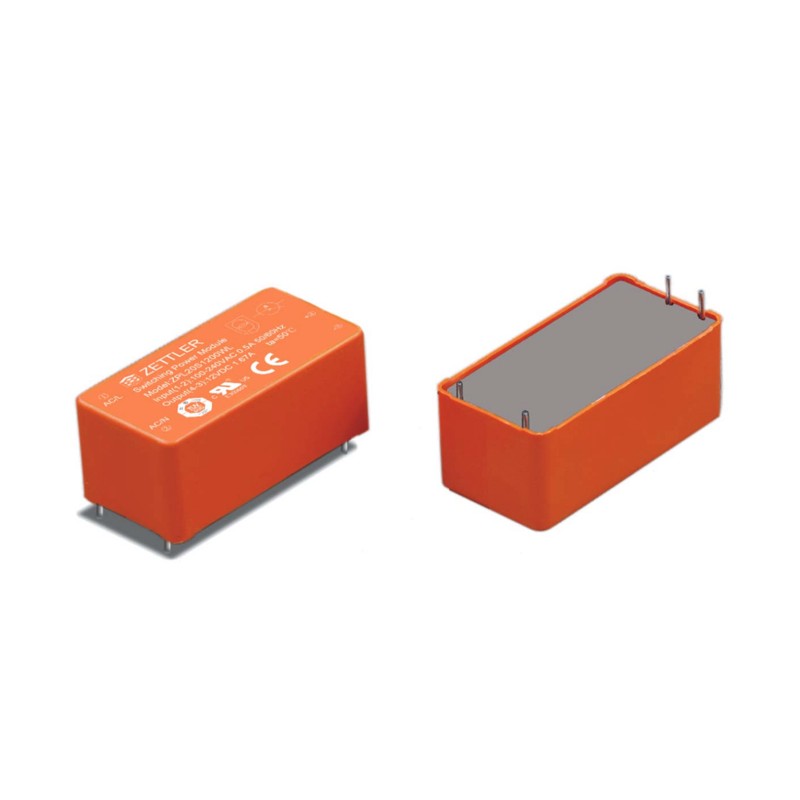

Zettler AC/DC converter series ZPL15S-WL and ZPL20S-WL

Switching power supplies in a plastic housing (UL94V-0) with 15 resp. 20W, a low no-load power, a compact size and protection class II. These devices are suitable for PCB mounting and are protected against overvoltage, overcurrent as well as short circuit. They have an environment-friendly design and comply with EN60335-1, EN62368-1, EN61558-2-16, EN61000-3-2, EN61000-3-3, EN61000-4-5, EN55035 as well as EN55032 class B. We offer the following types of this Zettler series: ZPL15S0500WL, ZPL15S1200WL, ZPL15S1500WL, ZPL15S1800WL, ZPL15S2400WL, ZPL20S0500WL ZPL20S1200WL, ZPL20S1500WL, ZPL20S1800WL and ZPL20S2400WL.

  • single output
  • output: 15 to 20W
  • input voltage: 90 to 264V AC (47 to 63Hz), 100 to 370V DC
  • output voltage tolerance: ±3%
  • input inrush current: 40A
  • leakage current: <0,3mA
  • operating temperature: -25 to +70°C
  • weight: 65g
ZPL20S1200WL, Zettler AC/DC converters, 15 and 20W, PCB, ZPL15S-WL and ZPL20S-WL series

ZPL20S1200WL

241960 ZPL20S1200WL ZPL20S1200WL Zettler AC/DC converter series ZPL15S-WL and ZPL20S-WL. Switching power&nbsp;supplies in a plastic housing (UL94V-0) with 15 resp. 20W, a low no-load power, a compact size and protection class II. These devices are suitable for PCB mounting and are protected against overvoltage, overcurrent as well as short circuit. They have an environment-friendly&nbsp;design and comply with&nbsp;EN60335-1, EN62368-1, EN61558-2-16, EN61000-3-2, EN61000-3-3, EN61000-4-5, EN55035 as well as EN55032 class B. We offer the following types of this Zettler series: ZPL15S0500WL, ZPL15S1200WL, ZPL15S1500WL, ZPL15S1800WL, ZPL15S2400WL, ZPL20S0500WL ZPL20S1200WL, ZPL20S1500WL, ZPL20S1800WL and ZPL20S2400WL. single output output: 15 to 20W input voltage: 90 to 264V AC (47 to 63Hz), 100 to 370V DC output voltage tolerance:&nbsp;&plusmn;3% input inrush current: 40A leakage current: &lt;0,3mA operating temperature: -25 to +70&deg;C weight: 65g

Specifications

manufacturer
Manufacturer's name ZPL20S1200WL
Output voltage [V] 12
Output current [mA] 1670
Efficiency [%] 85
Output power [W] 20
Ripple [mV] max. 200
Data Sheet

Unit price

7,89 €

Stock: 60
Further delivery:
CW 40/2024
