reed relays, SIL housing, 1 normally-open

* flux density version
* high coil resistance
* loop current detection
* insulation resistance (coil/contacts): 1500V
* requires only half the PCB area of DIP/DIL relays
* RRSDP_: with diode
* configuration: SPS...

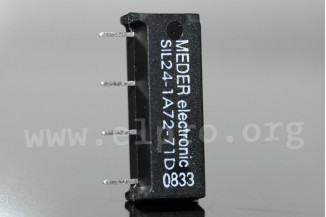

reed relays, SIL housing, 1 normally-open

* flux density version
* high coil resistance
* loop current detection
* insulation resistance (coil/contacts): 1500V
* requires only half the PCB area of DIP/DIL relays
* RRSDP_: with diode
* configuration: SPST-NO
* switching capacity, max.: 15W
* switching voltage, max.: 200V DC
* switching current, max.: 1A
* transport current, max.: 1.25A
* contact resistance: 150mΩ
* insulation resistance (coil/contacts): 1013Ω
* breakdown voltage, min. (coil/contacts): 1.500V DC
* operate time, max. (incl. bounce): 0.7ms
* release time, max.: 0.1ms
* vibration resistance (10...2000Hz): 20G
* temperature range: -20...+70°C
* soldering temperature/time: 260°C/5s
* coil data: polarized, monostable

> More
Download

Showing 1 - 6 of 6 items
  • article stock price volume discount
  • Standex-Meder
    RRS A 5 V
    8,19 €
    16818 RRS A 5 V SIL05-1A72-71L SIL05-1A72-71L
    8,19 €
    25 pcs. / 1,22 €
    stock: 2717
  • Standex-Meder
    RRS A 12 V
    10,59 €
    16816 RRS A 12 V SIL12-1A72-71L SIL12-1A72-71L
    10,59 €
    25 pcs. / 1,57 €
    stock: 1533
  • Standex-Meder
    RRS A 24 V
    10,19 €
    16817 RRS A 24 V SIL24-1A72-71L SIL24-1A72-71L
    10,19 €
    25 pcs. / 1,52 €
    stock: 1953
  • Standex-Meder
    RRSDP A 5 V
    8,29 €
    16821 RRSDP A 5 V SIL05-1A72-71D SIL05-1A72-71D
    8,29 €
    25 pcs. / 1,23 €
    stock: 9678
  • Standex-Meder
    RRSDP A 12 V
    9,99 €
    16819 RRSDP A 12 V SIL12-1A72-71D SIL12-1A72-71D
    9,99 €
    25 pcs. / 1,48 €
    stock: 3203
  • Standex-Meder
    RRSDP A 24 V
    8,79 €
    16820 RRSDP A 24 V SIL24-1A72-71D SIL24-1A72-71D
    8,79 €
    25 pcs. / 1,31 €
    stock: 8478
Showing 1 - 6 of 6 items
