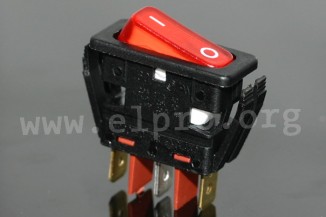

Arcolectric rocker switches, 16A (150A), for 11x30mm panel cut-out, 6000 series

* 1-pole version
* with connector 6.3x0.8mm
* operating voltage, max.: 250V AC
* switching current, max.: 16A
* switching current at inductive load, max.: 4A
* inrush current (EN61058-1): 150A
* insulation resistance: >20MΩ
* contact resistance (New Stat...

* 1-pole version
* with connector 6.3x0.8mm
* operating voltage, max.: 250V AC
* switching current, max.: 16A
* switching current at inductive load, max.: 4A
* inrush current (EN61058-1): 150A
* insulation resistance: >20MΩ
* contact resistance (New State, 12V DC/1A): <100mΩ
* contact opening width: 3mm
* soldering conditions (hand solder): 350°C/6s
* materials of shell and rocker: nylon 6.6
* material of illuminated rocker: polycarbonate
* material of current-carrying part: Cu alloy
* silver-plated contacts
* flammability class: UL94V2

> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Elektron Technology
    WNX 17
    2,99 €
    13368 WNX 17 C6000ALAAA C6000ALAAA
    2,99 €

    More
    Stock: 117
  • Elektron Technology
    WNX 18
    2,59 €
    13369 WNX 18 C6003ALNAC C6003ALNAC
    2,59 €

    More
    Stock: 279
