WNX 17

for 11x30mm panel cutouts

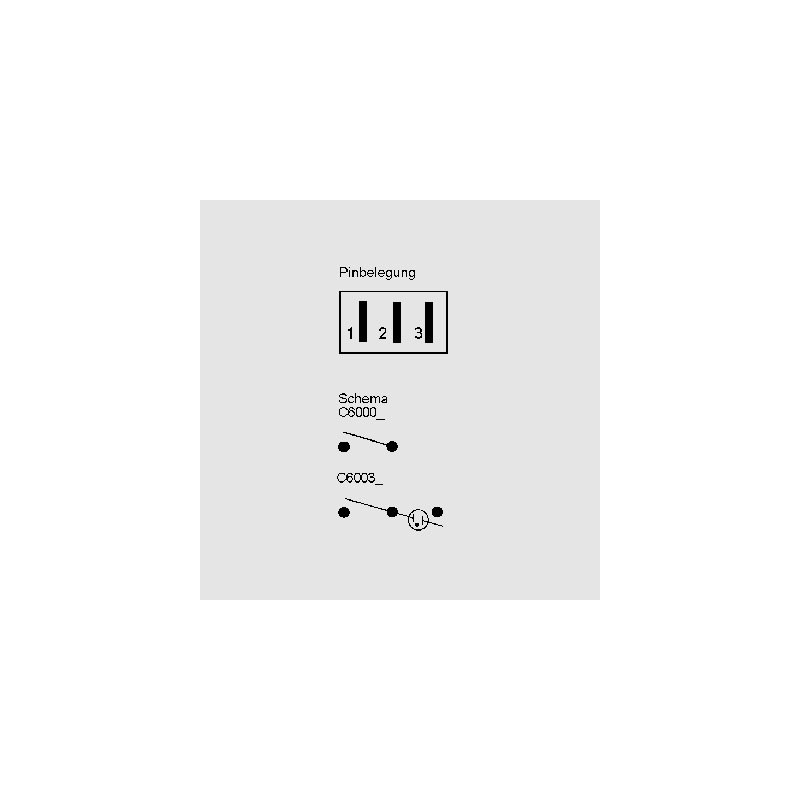

* 1-pole version
* with connector 6.3x0.8mm
* operating voltage, max.: 250V AC
* switching current, max.: 16A
* switching current at inductive load, max.: 4A
* inrush current (EN61058-1): 150A
* insulation resistance: >20MΩ
* contact resistance (New State, 12V DC/1A): <100mΩ
* contact opening width: 3mm
* soldering conditions (hand solder): 350°C/6s
* materials
shell and rocker: nylon 6.6
illuminated rocker: polycarbonate
* current-carrying part: Cu alloy
* contacts: silver-plated
* flammability class: UL94V2
WNX 17

WNX 17

13368 WNX 17 C6000ALAAA C6000ALAAA for 11x30mm panel cutouts. * 1-pole version* with connector 6.3x0.8mm* operating voltage, max.: 250V AC* switching current, max.: 16A* switching current at inductive load, max.: 4A* inrush current (EN61058-1): 150A* insulation resistance: &gt;20MΩ* contact resistance (New State, 12V DC/1A): &lt;100mΩ* contact opening width: 3mm * soldering conditions (hand solder): 350°C/6s* materialsshell and rocker: nylon 6.6illuminated rocker: polycarbonate* current-carrying part: Cu alloy* contacts: silver-plated* flammability class: UL94V2

Specifications

manufacturer
Manufacturer's name C6000ALAAA
Switch positions ON - OFF
Case colour black
Rocker black
Illuminated no
Rocker imprint I/O

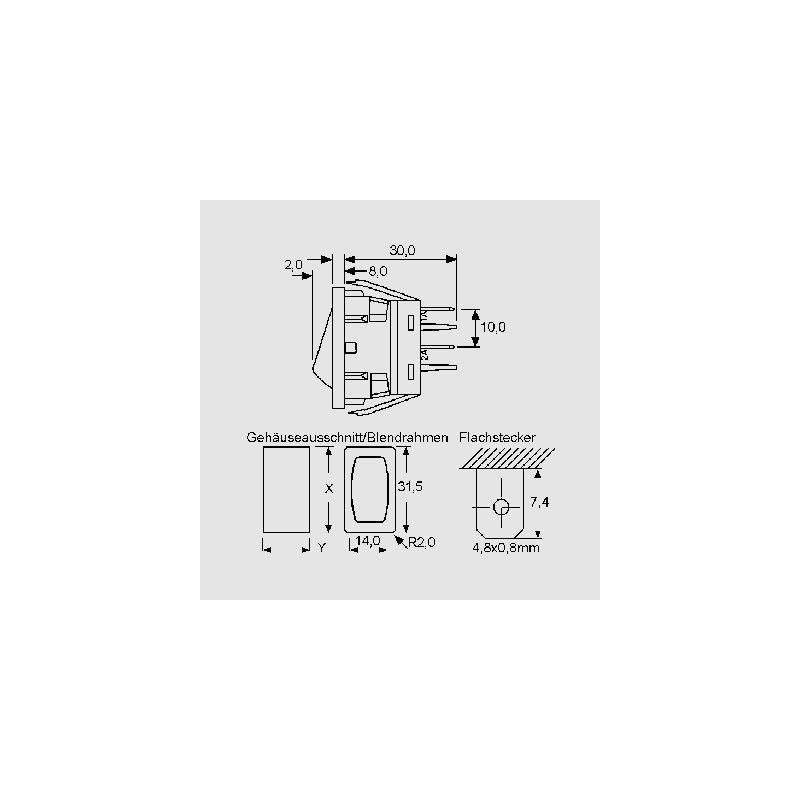

Panel cut-out [mm] 10 x 30
Data Sheet

Unit price

2,99 €

Stock: 117
Further delivery:
CW 35/2024

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
