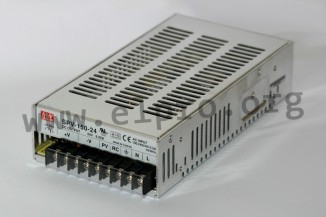

Mean Well power supply series SPV-150

Switching power supplies in an enclosed housing with 150W, a programmable output voltage (20 to 110% / by an external control signal 1 to 5,5V DC), a universal input and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a built-in remote ON/OFF control and comply with UL/EN60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: SPV-150-12, SPV-150-24 and SPV-150-48.

single output
output: 150W
input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC
maximal input inrush current: 45A
leakage current: <1mA
overload protection: 105 to 150%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -20 to +65°C
weight: 1100g
