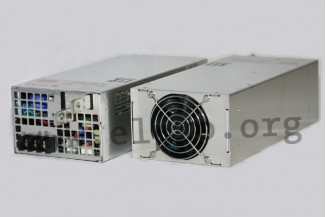

These power supplies have an enclosed case and are destined for control cabin applications due to their compact size (1U). They are endued with single output, built-in fan, screw terminals, built-in active PFC function, universal input, power fail signal as well as protections against overload by current limiting (hiccup after 5s, auto recovery), short circuit and overvoltage. Built-in remote signal for On/Off control of the output voltage. The devices are workung with internal auxiliary power of 12V/0.1A and are additionally offering a parallel function with active current sharing up to 6000W (3+1 units). For correcte voltage at load they are endued with a built-in remote sense function. We are offering the types RSP-1500-5, RSP-1500-12, RSP-1500-15, RSP-1500-24, RSP-1500-27 and RSP-1500-48 by manufacturer Meanwell.
* output: 1500 to 1536 Watt
* input voltage: 127 to 370 V DC, 90 to 264 V AC (47 to 63Hz)
* maximal input inrush current: 60 A
* maximal leakage current: 2 mA
* ±10 % output voltage adjustment
* 105 to 135 % overload protection
* I/P-O/P, withstand voltage: 3000 V AC
* I/P-FG, withstand voltage: 1500 V AC
* O/P-FG, withstand voltage: 500 V AC
* operating temperature: -20 to +70 °C
* by Meanwell
* weight: 3.0 kg
