RSP-1500-27

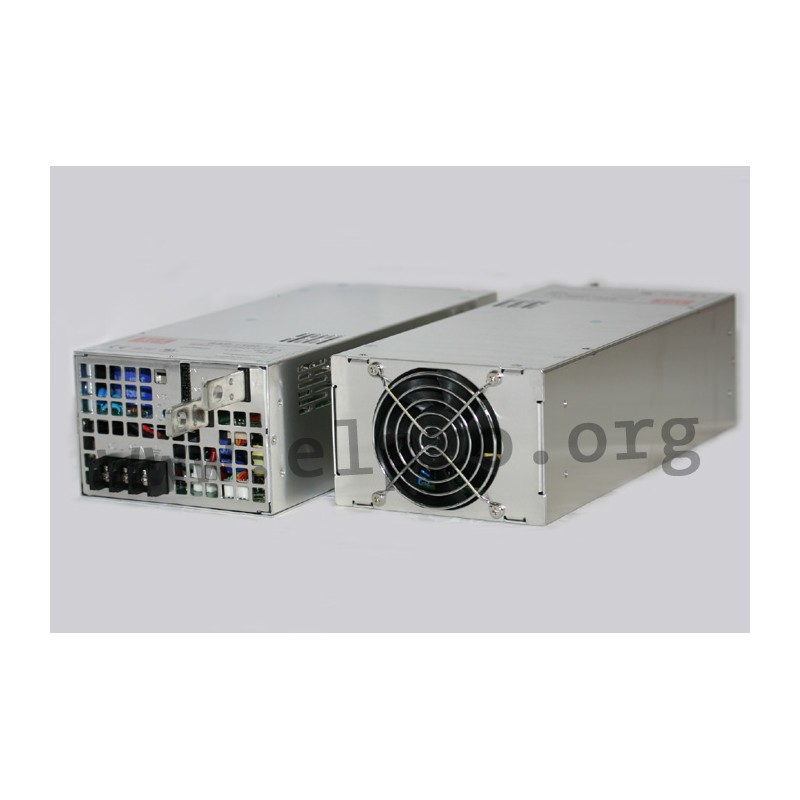

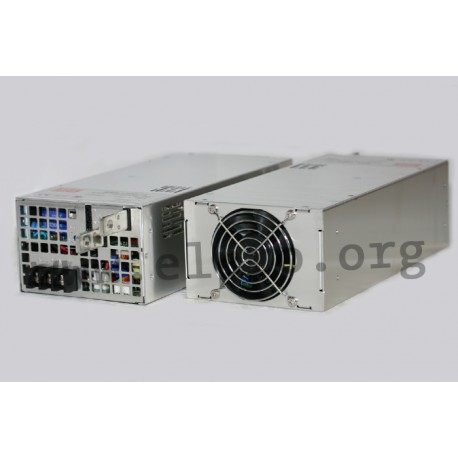

Mean Well power supply series RSP-1500

Switching power supplies in an enclosed housing with 1500W, screw terminals, a built-in remote ON/OFF control, a parallel function, a built-in remote sense function, a low profile (2U), a fan, a built-in auxiliary power (12V/0,1A), a universal input and a power fail signal. These devices have a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They are suitable for control cabinet mounting (19") as well as for active current sharing of up to 6000W (3+1 units) and comply with EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series: RSP-1500-5, RSP-1500-12, RSP-1500-15, RSP-1500-24, RSP-1500-27 and RSP-1500-48.

  • single output
  • output: 1200 to 1536W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <2mA
  • output voltage adjustment: ±10%
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 3000g

RSP-1500-27

29370 RSP-1500-27 RSP-1500-27 4711287437934 Mean Well power supply series RSP-1500. Switching power supplies in an enclosed housing with 1500W, screw terminals, a built-in remote ON/OFF control, a parallel function, a built-in remote sense function, a low profile (2U), a fan, a built-in auxiliary power (12V/0,1A), a universal input and a power fail signal. These devices have a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They are suitable for control cabinet mounting (19") as well as for active current sharing of up to 6000W (3+1 units) and comply with EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the following types of this Mean Well series: RSP-1500-5, RSP-1500-12, RSP-1500-15, RSP-1500-24, RSP-1500-27 and RSP-1500-48. single output output: 1200 to 1536W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A leakage current: &lt;2mA output voltage adjustment: ±10% overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70°C weight: 3000g

Specifications

manufacturer
Manufacturer's name RSP-1500-27
GTIN 4711287437934
Output voltage [V] 27
Phase 2 phase
Efficiency [%] 90
Output current range [A] 0...56
Output voltage tolerance: [%] 1
Output power [W] 1512
Ripple [mVp-p] 150
Data Sheet

Unit price

343,49 €

Volume discounts

Quantity Unit price
50 + 334,69 €

Stock: 19
Further delivery:
CW 29/2024
