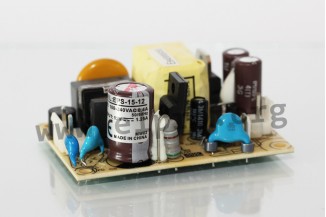

Mean Well power supply series ESP-15

Switching power supplies in a compact housing (open frame) with 15W, a universal input and a low no-load power. These devices have contact pins for nylon crimp terminals, are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPS-15-3.3, EPS-15-5, EPS-15-7.5, EPS-15-12, EPS-15-15, EPS-15-24, EPS-15-27, EPS-15-36 and EPS-15-48.

single output
output: 9,9 to 15,12W
input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
maximal input inrush current: 45A
leakage current: <1mA
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -30 to +70°C
weight: 57g
