Mean Well power supply series PD-25

Switching power supplies in an open frame design with 25W, a contact pin for nylon-crimp terminals and a universal input. They are protected against short circuit, overvoltage and overload by pulsing hiccup shut...

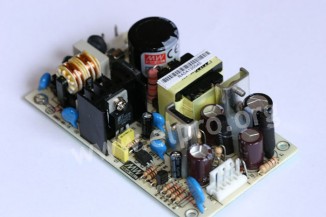

Mean Well power supply series PD-25

Switching power supplies in an open frame design with 25W, a contact pin for nylon-crimp terminals and a universal input. They are protected against short circuit, overvoltage and overload by pulsing hiccup shutdown (auto recovery) and comply with EN60950-1 und EN55032 class B. We offer the following types of this Mean Well series: PD-25A, PD-25B, PD-2503, PD-2505, PD-2512 and PD-2515.

  • dual output
  • output: 24 to 25W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 30A
  • operating temperature: -10 bis +60°C
  • overload protection: >105%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage I/P-FG PD-2503: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • weight: 130g
> More
