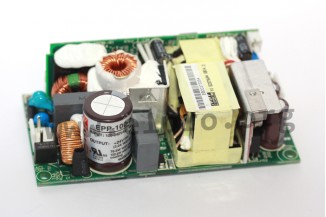

Mean Well power supply series EPP-100

Switching power supplies in a 4"x2" housing (open frame) with 100W (with 20cfm forced air), a low no-load power, a built-in auxiliary output (12V/0,3A), a universal input and a pin strip connection for nylon crimp terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are very efficient and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPP-100-12, EPP-100-15, EPP-100-24, EPP-100-27 and EPP-100-48.

single output
output: 75 to 76,8W
input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
maximal input inrush current: 70A
leakage current: <2mA
overload protection: 105 to 145%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -30 to +70°C
weight: 200g
