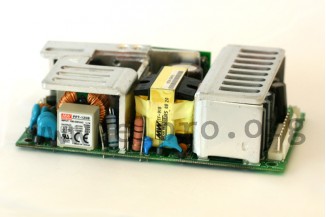

Mean Well power supply series PPT-125

Switching power supplies in a 5"x3" housing (open frame) with 125W (18cfm forced air) and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with UL/EN60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PPT-125A, PPT-125B, PPT-125C and PPT-125D.

triple output
output: 79 to 101W
input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
maximal input inrush current: 24A
leakage current: <2mA
output voltage adjustment CH1: ±5%
overload protection: 130 to 160%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 1500V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -20 to +70°C
weight: 370g
