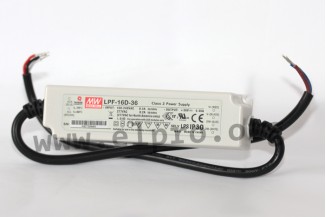

LED power supply LPF-16D by Meanwell

These dimmable switching power supplies (external voltage 1 till 10V DC, PWM, potentiometer) are suited for indoor and outdoor LED and illumination installations (IP30) and conform UL1310, Class II. Facilities:...

LED power supply LPF-16D by Meanwell

These dimmable switching power supplies (external voltage 1 till 10V DC, PWM, potentiometer) are suited for indoor and outdoor LED and illumination installations (IP30) and conform UL1310, Class II. Facilities: fixed output voltage, universal input, constant current, built-in active PFC function as well as protection against short circuit, overload, overvoltage and overload by current limiting (auto recovery)
We offer the following Mean Well types: LPF-16D-12, LPF-16D-15, LPF-16D-20, LPF-16D-24, LPF-16D-30, LPF-16D-36, LPF-16D-42, LPF-16D-48 and LPF-16D-54

output: 16 watt
* input voltage: up 127 to 431 volt DC, 90 to 305 volt AC (47 to 63Hz)
* 60 to 100% output constant current range
* maximal input inrush current: 50A
* 95 to 108% over load protection
* I/P-O/P, withstand voltage: 3750 volt AC
* operating temperature: up -40 to +70 °C
* by Mean Well
* weight: 210 grams

> More
Download

Showing 1 - 7 of 7 items
  • article stock price volume discount
  • MeanWell
    LPF-16D-12
    18,70 €
    36511 LPF-16D-12 LPF-16D-12
    18,70 €
    20 pcs. / 16,50 €
    stock: 137
  • MeanWell
    LPF-16D-20
    18,70 €
    36508 LPF-16D-20 LPF-16D-20
    18,70 €
    20 pcs. / 16,50 €
    stock: 16
  • MeanWell
    LPF-16D-24
    18,70 €
    36504 LPF-16D-24 LPF-16D-24
    18,70 €
    20 pcs. / 16,50 €
    stock: 125
  • MeanWell
    LPF-16D-36
    18,70 €
    36509 LPF-16D-36 LPF-16D-36
    18,70 €
    20 pcs. / 16,50 €
    stock: 0
  • MeanWell
    LPF-16D-42
    18,70 €
    36512 LPF-16D-42 LPF-16D-42
    18,70 €
    20 pcs. / 16,50 €
    stock: 64
  • MeanWell
    LPF-16D-48
    18,70 €
    36506 LPF-16D-48 LPF-16D-48
    18,70 €
    20 pcs. / 16,50 €
    stock: 8
  • MeanWell
    LPF-16D-54
    18,70 €
    36510 LPF-16D-54 LPF-16D-54
    18,70 €
    20 pcs. / 16,50 €
    stock: 6
Showing 1 - 7 of 7 items
