LPF-16D-42

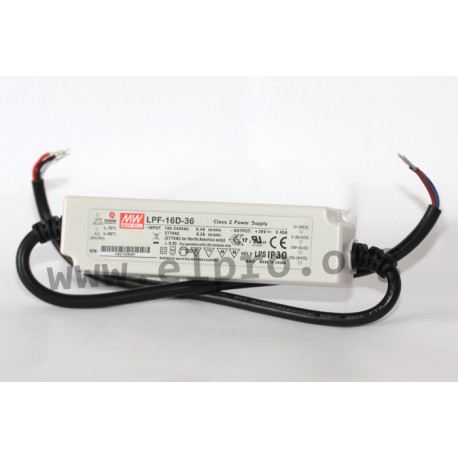

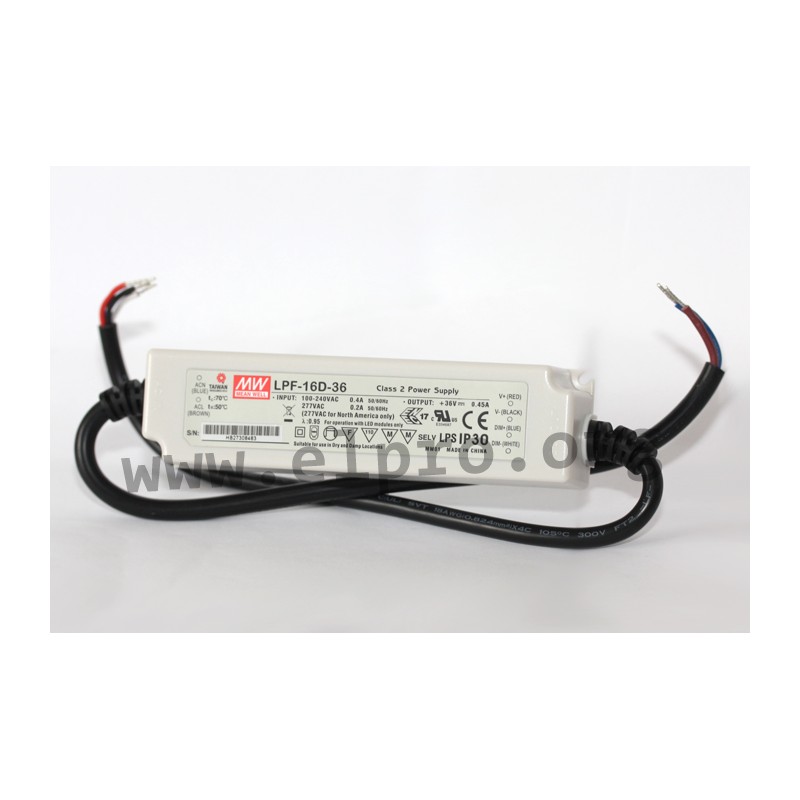

Mean Well LED driver series LPF-16D

LED drivers in a plastic housing (IP30) with a constant current, 16W and a universal input. These devices are protected against overload (auto recovery), short circuit as well as overvoltage, are dimmable (external voltage 1 to 10V DC, PWM, potentiometer) and comply with EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13 as well as UL1310 Class 2. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: LPF-16D-12, LPF-16D-15, LPF-16D-20, LPF-16D-24, LPF-16D-30, LPF-16D-36, LPF-16D-42, LPF-16D-48 and LPF-16D-54.

  • single output
  • output: 16 to 16,38W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -35 to +70°C

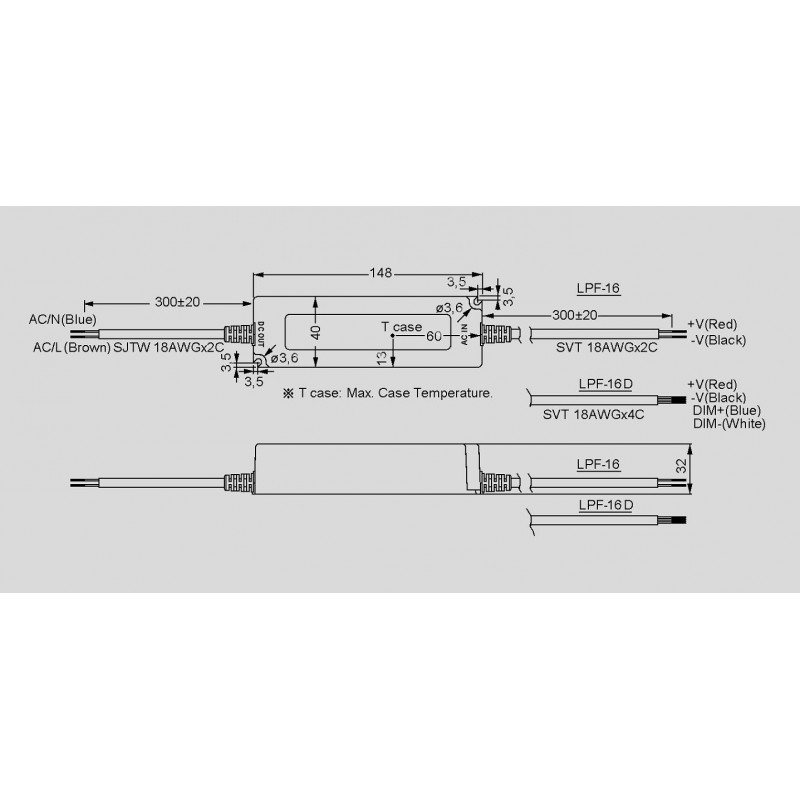

  • dimensions: 148x40x32mm
  • weight: 210g

LPF-16D-42

36512 LPF-16D-42 LPF-16D-42 4711287440774 Mean Well LED driver series LPF-16D. LED drivers in a plastic housing (IP30) with a constant current, 16W and a universal input. These devices are protected against overload (auto recovery), short circuit as well as overvoltage, are dimmable (external voltage 1 to 10V DC, PWM, potentiometer) and comply with EN61000-3-2, Class C, EN55015, EN61347-1, EN61347-2-13 as well as UL1310 Class 2. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: LPF-16D-12, LPF-16D-15, LPF-16D-20, LPF-16D-24, LPF-16D-30, LPF-16D-36, LPF-16D-42, LPF-16D-48 and LPF-16D-54. single output output: 16 to 16,38W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 45A withstand voltage I/P-O/P: 3750V AC operating temperature: -35 to +70°C dimensions: 148x40x32mm weight: 210g

Specifications

manufacturer
Manufacturer's name LPF-16D-42
GTIN 4711287440774
Output voltage [V] 42
Phase 2 phase
Efficiency [%] 85
Output current range [A] 0,39
Output voltage tolerance: [%] 4
Output power [W] 16,38
Ripple [mVp-p] 250
Data Sheet

Unit price

18,29 €

Volume discounts

Quantity Unit price
50 + 16,99 €

Stock: 32
Further delivery:
CW 29/2024
