LED power supply LPF-40 by Meanwell

These power supplies have a plastic enclosure and are suitable for LED and illumination applications in indoor and outdoor areas (IP67). They conform UL1310 class 2 and are endued with universal input, built-in ...

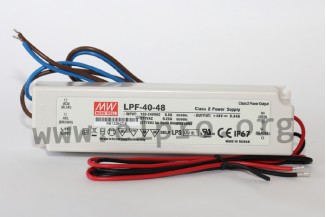

LED power supply LPF-40 by Meanwell

These power supplies have a plastic enclosure and are suitable for LED and illumination applications in indoor and outdoor areas (IP67). They conform UL1310 class 2 and are endued with universal input, built-in active PFC function, fixed output voltage, constant current and protections against short circuit, overvoltage and overload by current limiting (auto recovery). We have the following types by manufacturer Mean Well in our product range: LPF-40-12, LPF-40-15, LPF-40-20, LPF-40-24, LPF-40-30, LPF-40-36, LPF-40-42, LPF-40-48 and LPF-40-54.

* output: 40 to 41 Watt
* input voltage: 127 to 431 V DC, 90 to 305 V AC (47 to 63Hz)
* maximal input inrush current: 75A
* 60 to 100% output constant current range
* 95 to 108% overload protection
* I/P-O/P, withstand voltage: 3750 V AC
* operating temperature: -40 to +70 °C
* by Mean Well
* weight: 0.44 kg

> More
Download

Showing 1 - 8 of 8 items
  • article stock price volume discount
  • MeanWell
    LPF-40-12
    20,30 €
    36050 LPF-40-12 LPF-40-12
    20,30 €
    20 pcs. / 18,00 €
    stock: 2474
  • MeanWell
    LPF-40-20
    20,30 €
    36046 LPF-40-20 LPF-40-20
    20,30 €
    20 pcs. / 18,00 €
    stock: 29
  • MeanWell
    LPF-40-24
    20,30 €
    36048 LPF-40-24 LPF-40-24
    20,30 €
    20 pcs. / 18,00 €
    stock: 1337
  • MeanWell
    LPF-40-30
    20,30 €
    36043 LPF-40-30 LPF-40-30
    20,30 €
    20 pcs. / 18,00 €
    stock: 460
  • MeanWell
    LPF-40-36
    20,30 €
    36049 LPF-40-36 LPF-40-36
    20,30 €
    20 pcs. / 18,00 €
    stock: 38
  • MeanWell
    LPF-40-42
    20,30 €
    36045 LPF-40-42 LPF-40-42
    20,30 €
    20 pcs. / 18,00 €
    stock: 22
  • MeanWell
    LPF-40-48
    20,30 €
    36047 LPF-40-48 LPF-40-48
    20,30 €
    20 pcs. / 18,00 €
    stock: 57
  • MeanWell
    LPF-40-54
    20,30 €
    36044 LPF-40-54 LPF-40-54
    20,30 €
    20 pcs. / 18,00 €
    stock: 25
Showing 1 - 8 of 8 items
