LPF-40-12

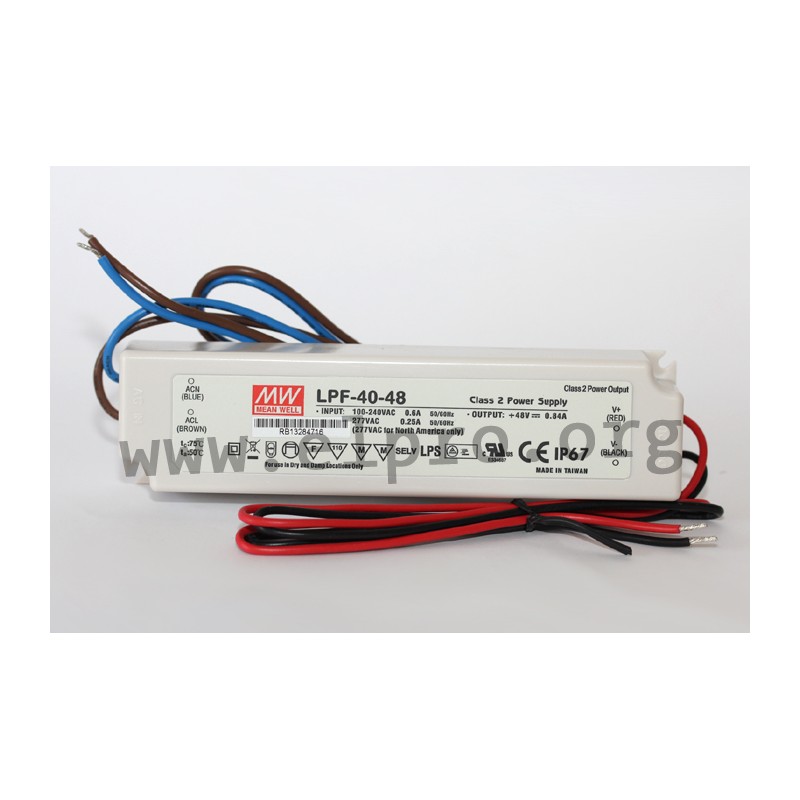

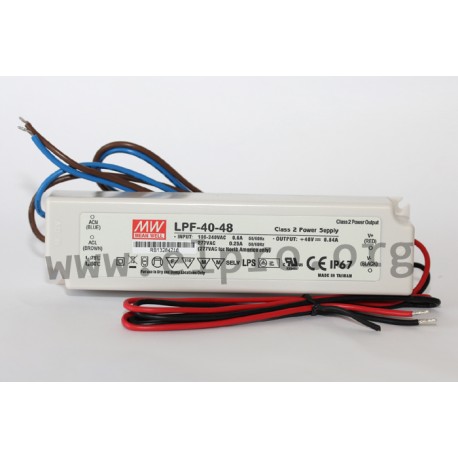

Mean Well LED driver series LPF-40

LED drivers in a plastic housing (IP67) with a universal input, 40W and a constant voltage / constant current (mixed mode). These devices are protected against overload (auto recovery), overvoltage as well as short circuit, are suitable for LED lighting applications and have a built-in active PFC function. They comply with UL1310 Class 2, EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13 and are not dimmable. We offer the following types of this Mean Well series: LPF-40-12, LPF-40-15, LPF-40-20, LPF-40-24, LPF-40-30, LPF-40-36, LPF-40-42, LPF-40-48 and LPF-40-54.

  • single output
  • output: 40,08 to 41,04W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +70°C
  • dimensions: 162,5x43x32mm
  • weight: 440g

LPF-40-12

36050 LPF-40-12 LPF-40-12 4711287458441 Mean Well LED driver series LPF-40. LED drivers in a plastic housing (IP67) with a universal input, 40W and a constant voltage / constant current (mixed mode). These devices are protected against overload (auto recovery), overvoltage as well as short circuit, are suitable for LED lighting applications and have a built-in active PFC function. They comply with UL1310 Class 2, EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13 and are not dimmable. We offer the following types of this Mean Well series: LPF-40-12, LPF-40-15, LPF-40-20, LPF-40-24, LPF-40-30, LPF-40-36, LPF-40-42, LPF-40-48 and LPF-40-54. single output output: 40,08 to 41,04W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +70°C dimensions: 162,5x43x32mm weight: 440g

Specifications

manufacturer
Manufacturer's name LPF-40-12
GTIN 4711287458441
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 84
Output current range [A] 3,34
Output voltage tolerance: [%] 4
Output power [W] 40,08
Ripple [mVp-p] 150
Data Sheet

Unit price

18,29 €

Volume discounts

Quantity Unit price
50 + 17,19 €

Stock: 0
Next incoming goods:
CW 15/2024
698 units


Further delivery:
CW 29/2024
