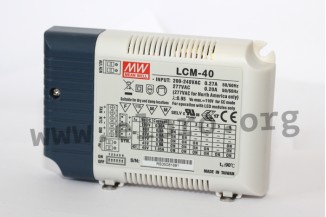

Mean Well LED driver series LCM-40

LED drivers in a plastic case (IP20) with a constant current (selectable through a DIL switch), protection class II, 40W and a DALI (LCM-40DA) resp. a DALI 2.0 interface (LCM-40DA2). These devices are protected ag...

Mean Well LED driver series LCM-40

LED drivers in a plastic case (IP20) with a constant current (selectable through a DIL switch), protection class II, 40W and a DALI (LCM-40DA) resp. a DALI 2.0 interface (LCM-40DA2). These devices are protected against overtemperature, overload (auto recovery), overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13 as well as EN55015. They have a dimming function (dim-to-off) as well as a built-in active PFC function and are suitable for LED lightning applications. We offer the following types of this Mean Well series: LCM-40, LCM-40DA and LCM-40DA2.

  • single output
  • output: 42W
  • input voltage: 180 to 295V AC (47 to 63Hz), 254 to 417V DC
  • maximal input inrush current: 20A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +90°C
  • weight: 240g
  • constant current selectable through a DIL switch:
    • 2 to 100V UA (350mA IA)
    • 2 to 80V UA (500mA IA)
    • 2 to 67V UA (600mA IA)
    • 2 to 57V UA (700mA IA)
    • 2 to 45V UA (900mA IA)
    • 2 to 40V UA (1050mA IA)

Matching synchronisation cables

> More
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    LCM-40
    23,49 €
    38727 LCM-40 LCM-40
    23,49 €
    Quantity Unit price
    50 + 22,09 €
    Stock: 1268
  • Mean Well
    LCM-40DA
    28,39 €
    38728 LCM-40DA LCM-40DA
    28,39 €
    Quantity Unit price
    50 + 26,69 €
    Stock: 4890
  • Mean Well
    LCM-40EO
    32,09 €
    111898 LCM-40EO LCM-40EO
    32,09 €
    Stock: 0
  • Mean Well
    LCM-40DA2, Mean Well LED drivers, 42W, IP20, constant current, dimmable, DALI interface, LCM-40 series
    29,39 €
    236163 LCM-40DA2 LCM-40DA2
    29,39 €
    Quantity Unit price
    50 + 27,59 €
    Stock: 111
Showing 1 - 4 of 4 products
