LCM-40

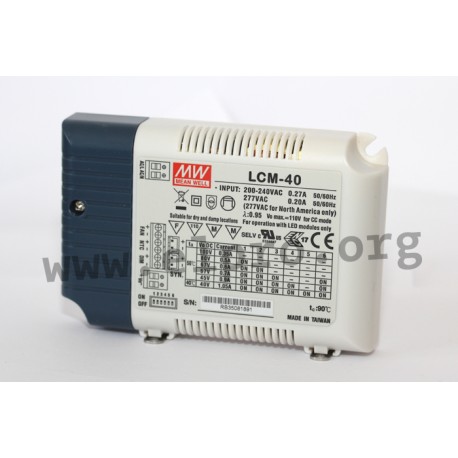

Mean Well LED power supply series LCM-40

These switching power supplies are destined for LED and illumination applications in indoor areas. These devices have a plastic housing (IP20), built-in active PFC function, insulation class II, temperature compensation function by external NTC and overload protection by current limiting (auto recovery). They are also protected against short circuit and overvoltage. LCM-40 is dimmbable (external voltage 1 to 10V DC, PWM). LCM-40DA is endued with DALI (digital addressable lighting-Interface), push dimming function. LCM-40EO has a wireless integrated EnOcean module.

• power output: 42 Watt
• input voltage: 180 to 295 Volt AC / 254 to 417 Volt DC, 47 to 63Hz
• maximal input inrush current: 20A
• constant current selectable by DIP switch:
2 to 100V UA (350mA IA)
2 to 80V UA (500mA IA)
2 to 67V UA (600mA IA)
2 to 57V UA (700mA IA)
2 to 45V UA (900mA IA)
2 to 40V UA (1050mA IA)
• I/P-O/P, withstand voltage: 3750 Volt AC
• operating temperature: -30 to +60 °C
• by Mean Well
• weight: 0.24 kg

• here you find suitable synchronisation cables

LCM-40

38727 LCM-40 LCM-40 Mean Well LED power supply series LCM-40. These switching power supplies are destined for LED and illumination applications in indoor areas. These devices have a plastic housing (IP20), built-in active PFC function, insulation class II, temperature compensation function by external NTC and overload protection by current limiting (auto recovery). They are also protected against short circuit and overvoltage. LCM-40 is dimmbable (external voltage 1 to 10V DC, PWM). LCM-40DA is endued with DALI (digital addressable lighting-Interface), push dimming function. LCM-40EO has a wireless integrated EnOcean module.• power output: 42 Watt• input voltage: 180 to 295 Volt AC / 254 to 417 Volt DC, 47 to 63Hz• maximal input inrush current: 20A• constant current selectable by DIP switch:2 to 100V UA (350mA IA)2 to 80V UA (500mA IA)2 to 67V UA (600mA IA)2 to 57V UA (700mA IA)2 to 45V UA (900mA IA)2 to 40V UA (1050mA IA)• I/P-O/P, withstand voltage: 3750 Volt AC• operating temperature: -30 to +60 °C• by Mean Well• weight: 0.24 kg• here you find suitable synchronisation cables

Data sheet

manufacturer
manufacturer's name LCM-40
output power [W] 42
ripple [mVp-p] 700
phase 2 phase
efficiency [%] 91

Download

Data Sheet

23,50 €

Volume discounts

20 pcs. / 20,70 €

stock: 1079
