LED power supply LPF-60D by Meanwell

These power units have a plastic case and are suited for LED and illumination applications in indoor and outdoor areas (IP76). They conform UL1310 class 2 and are endued with built-in active PFC function, fixed...

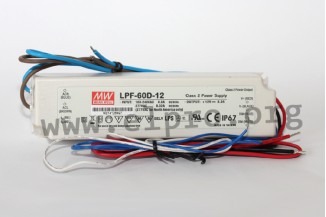

LED power supply LPF-60D by Meanwell

These power units have a plastic case and are suited for LED and illumination applications in indoor and outdoor areas (IP76). They conform UL1310 class 2 and are endued with built-in active PFC function, fixed output voltage, constant current, universal input and protections against overload by current limiting (auto recovery), short circuit and overvoltage. This is a dimmable series with a built-in 3 in 1 dimming function (external voltage 1 to 10V DC, PWM, potentiometer). We have the following types by manufacturer Mean Well: LPF-60D-12, LPF-60D-15, LPF-60D-20, LPF-60D-24, LPF-60D-30, LPF-60D-36, LPF-60D-42, LPF-60D-48 and LPF-60D-54.

* output: 60 Watt
* input voltage: 127 to 431 V DC, 90 to 305 V AC (47 to 63Hz)
* maximal input inrush current: 75A
* 60 to 100% output constant current range
* 95 to 108% overload protection
* I/P-O/P, withstand voltage: 3750 V AC
* operating temperature: -40 to +70 °C
* by Mean Well
* weight: 0.45 kg

> More
Download

Showing 1 - 9 of 9 items
  • article stock price volume discount
  • MeanWell
    LPF-60D-12
    25,60 €
    36074 LPF-60D-12 LPF-60D-12
    25,60 €
    20 pcs. / 22,70 €
    stock: 229
  • MeanWell
    LPF-60D-15
    25,60 €
    36073 LPF-60D-15 LPF-60D-15
    25,60 €
    20 pcs. / 22,70 €
    stock: 16
  • MeanWell
    LPF-60D-20
    25,60 €
    36069 LPF-60D-20 LPF-60D-20
    25,60 €
    20 pcs. / 22,70 €
    stock: 145
  • MeanWell
    LPF-60D-24
    25,60 €
    36071 LPF-60D-24 LPF-60D-24
    25,60 €
    20 pcs. / 22,70 €
    stock: 649
  • MeanWell
    LPF-60D-30
    25,60 €
    36070 LPF-60D-30 LPF-60D-30
    25,60 €
    20 pcs. / 22,70 €
    stock: 64
  • MeanWell
    LPF-60D-36
    25,60 €
    36072 LPF-60D-36 LPF-60D-36
    25,60 €
    20 pcs. / 22,70 €
    stock: 15
  • MeanWell
    LPF-60D-42
    25,60 €
    36075 LPF-60D-42 LPF-60D-42
    25,60 €
    20 pcs. / 22,70 €
    stock: 55
  • MeanWell
    LPF-60D-48
    25,60 €
    36076 LPF-60D-48 LPF-60D-48
    25,60 €
    20 pcs. / 22,70 €
    stock: 0
  • MeanWell
    LPF-60D-54
    25,60 €
    36077 LPF-60D-54 LPF-60D-54
    25,60 €
    20 pcs. / 22,70 €
    stock: 19
Showing 1 - 9 of 9 items
