LPF-60D-42

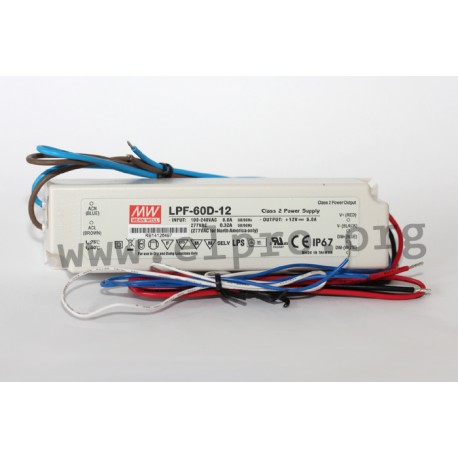

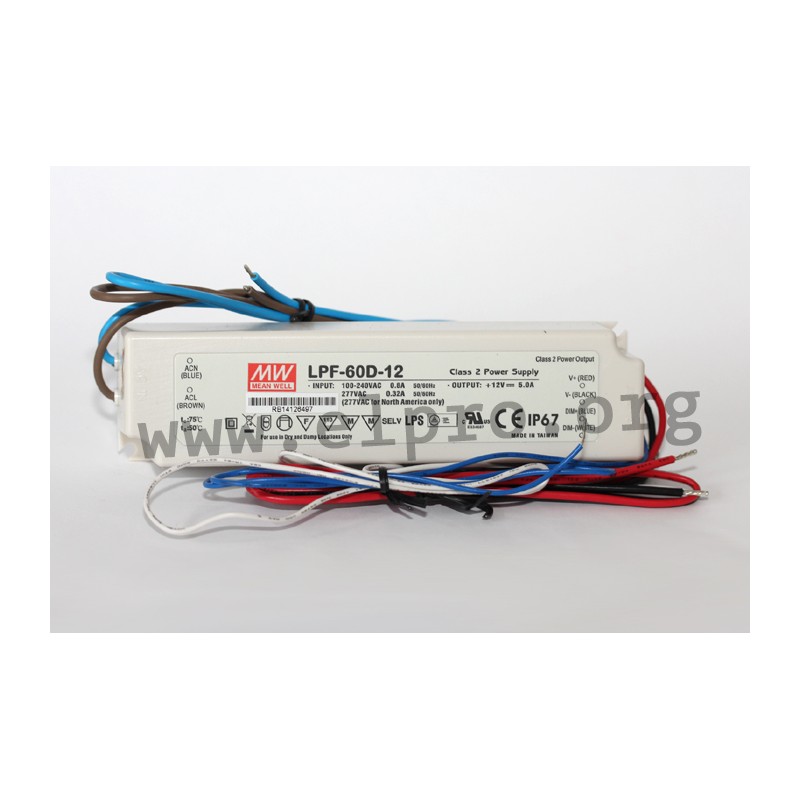

LED power supply LPF-60D by Meanwell

These power units have a plastic case and are suited for LED and illumination applications in indoor and outdoor areas (IP76). They conform UL1310 class 2
and are endued with built-in active PFC function, fixed output voltage, constant current, universal input and protections against overload by current limiting (auto recovery), short circuit and overvoltage. This is a dimmable series with a built-in 3 in 1 dimming function (external voltage 1 to 10V DC, PWM, potentiometer). We have the following types by manufacturer Mean Well: LPF-60D-12, LPF-60D-15, LPF-60D-20, LPF-60D-24, LPF-60D-30, LPF-60D-36, LPF-60D-42, LPF-60D-48 and LPF-60D-54.

• output: 60.06 watt
• input voltage: up 127 to 431 volt DC, 90 to 305 volt AC (47 to 63Hz)
• maximal input inrush current: 75A
• 60 to 100% output constant current range
• 95 to 108% over load protection
• I/P-O/P, withstand voltage: 3750 volt AC
• operating temperature: up -40 to +70 °C
• by Mean Well
• weight: 0.45 kg

LPF-60D-42

36075 LPF-60D-42 LPF-60D-42 LED power supply LPF-60D by Meanwell. These power units have a plastic case and are suited for LED and illumination applications in indoor and outdoor areas (IP76). They conform UL1310 class 2and are endued with built-in active PFC function, fixed output voltage, constant current, universal input and protections against overload by current limiting (auto recovery), short circuit and overvoltage. This is a dimmable series with a built-in 3 in 1 dimming function (external voltage 1 to 10V DC, PWM, potentiometer). We have the following types by manufacturer Mean Well: LPF-60D-12, LPF-60D-15, LPF-60D-20, LPF-60D-24, LPF-60D-30, LPF-60D-36, LPF-60D-42, LPF-60D-48 and LPF-60D-54.• output: 60.06 watt• input voltage: up 127 to 431 volt DC, 90 to 305 volt AC (47 to 63Hz)• maximal input inrush current: 75A• 60 to 100% output constant current range• 95 to 108% over load protection• I/P-O/P, withstand voltage: 3750 volt AC• operating temperature: up -40 to +70 °C• by Mean Well• weight: 0.45 kg

Data sheet

manufacturer
manufacturer's name LPF-60D-42
output voltage [V] 42
phase 2 phase
efficiency [%] 90
output current range [A] 1,43
output power [W] 60,06
output voltage tolerance: [%] 4
ripple [mVp-p] 250

Download

Data Sheet

25,60 €

Volume discounts

20 pcs. / 22,70 €

Item: 0
Next incoming:
CW:17/2020
62 pieces
