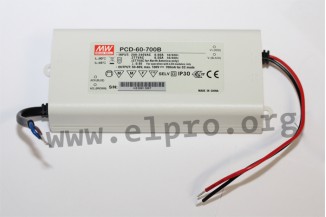

Mean Well LED driver series PCD-60

LED drivers in a plastic housing (IP42) with a constant current, 60W, an AC dimming function and a stranded wire connection. These devices are protected against overload (auto recovery), overvoltage, overheat as well as short circuit and comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function and are suitable for phase control / reverse phase control dimmers as well as for LED lighting applications. We offer the following types of this Mean Well series: PCD-60-500B, PCD-60-700B, PCD-60-1050B, PCD-60-1400B, PCD-60-1750B, PCD-60-2000B and PCD-60-2400B.

single output
output: 54 to 60,2W
input voltage: 180 to 295V AC (47 to 63Hz)
maximal input inrush current: 13A
withstand voltage I/P-O/P: 3750V AC
operating temperature: -30 to +45°C
dimensions: 128x60x31,5mm
weight: 350g

> More

Data Sheet
