PCD-60-2400B

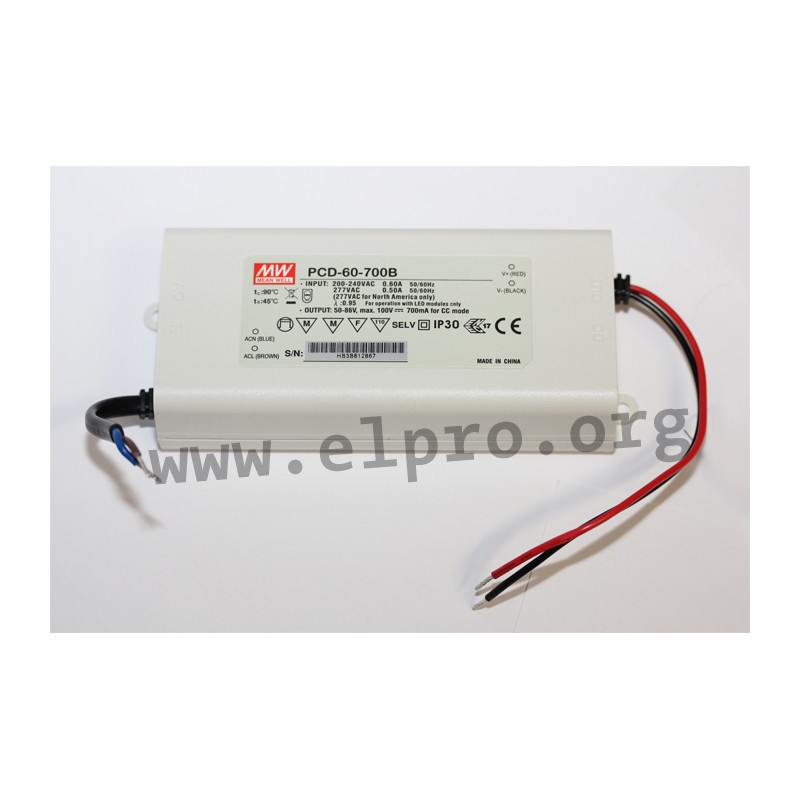

Mean Well LED driver series PCD-60

LED drivers in a plastic housing (IP42) with a constant current, 60W, an AC dimming function and a stranded wire connection. These devices are protected against overload (auto recovery), overvoltage, overheat as well as short circuit and comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function and are suitable for phase control / reverse phase control dimmers as well as for LED lighting applications. We offer the following types of this Mean Well series: PCD-60-500B, PCD-60-700B, PCD-60-1050B, PCD-60-1400B, PCD-60-1750B, PCD-60-2000B and PCD-60-2400B.

  • single output
  • output: 54 to 60,2W
  • input voltage: 180 to 295V AC (47 to 63Hz)
  • maximal input inrush current: 13A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +45°C

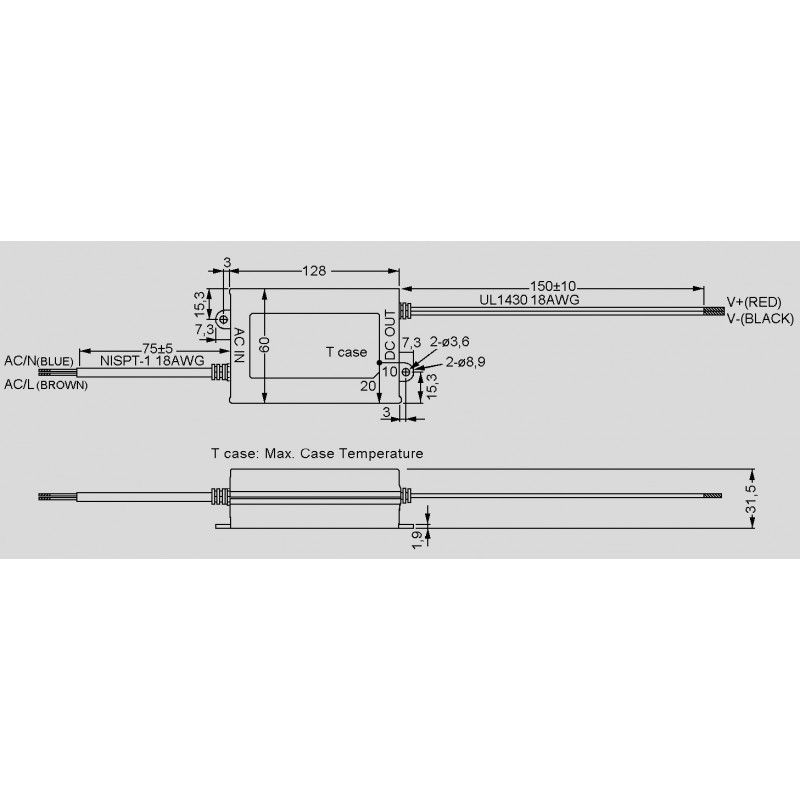

  • dimensions: 128x60x31,5mm
  • weight: 350g

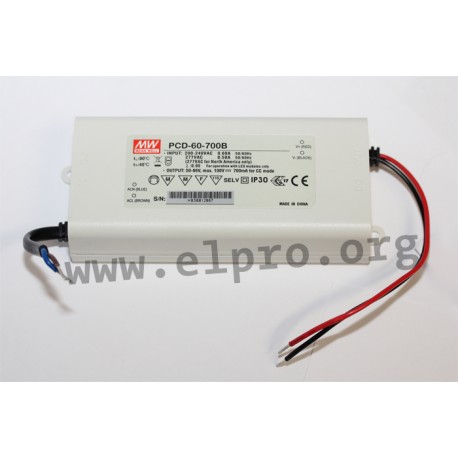

Meanwell PCD-60 series

PCD-60-2400B

41292 PCD-60-2400B PCD-60-2400B 4711287458335 Mean Well LED driver series PCD-60. LED drivers in a plastic housing (IP42) with a constant current, 60W, an AC dimming function and a stranded wire connection. These devices are protected against overload (auto recovery), overvoltage, overheat as well as short circuit and comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They have a built-in active PFC function and are suitable for phase control / reverse phase control dimmers as well as for LED lighting applications. We offer the following types of this Mean Well series: PCD-60-500B, PCD-60-700B, PCD-60-1050B, PCD-60-1400B, PCD-60-1750B, PCD-60-2000B and PCD-60-2400B. single output output: 54 to 60,2W input voltage: 180 to 295V AC (47 to 63Hz) maximal input inrush current: 13A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +45°C dimensions: 128x60x31,5mm weight: 350g

Specifications

manufacturer
Manufacturer's name PCD-60-2400B
GTIN 4711287458335
Output voltage [V] 15...25
Phase 2 phase
Output current range [mA] 2400
Ripple [Vp-p] 2,4
Efficiency [%] 84
Output power [W] 60
Data Sheet

Unit price

19,19 €

Volume discounts

Quantity Unit price
50 + 18,09 €

Stock: 32
Further delivery:
CW 05/2026
