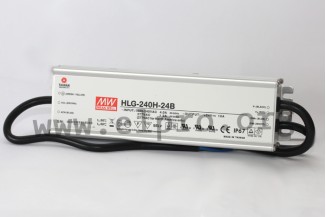

Mean Well LED driver series HLG-240H

LED drivers in a metal housing (IP67) with a power output of 240W and constant current / constant voltage. These devices comply with SELV regulations and include an active PFC function as well as protection aga...

Mean Well LED driver series HLG-240H

LED drivers in a metal housing (IP67) with a power output of 240W and constant current / constant voltage. These devices comply with SELV regulations and include an active PFC function as well as protection against overload (with auto recovery), overtemperature, overvoltage and short circuits. They are suitable for use in LED lighting applications that require lead-out control for dimming purposes while adhering to EN61347-1, EN61347-2-13,and EN50155 standards along with those set by EN61000-3-2 Class C or higher levels; additionally they meet the requirements specified under both the EN61000-3-3 standard as well as those outlined within the guidelines established by EN61547. We offer the following types of this Mean Well series: HLG-240H-12B, HLG-240H-15B, HLG-240H-20B, HLG-240H-24B, HLG-240H-30B, HLG-240H-36B, HLG-240H-42B, HLG-240H-48B and HLG-240H-54B.

  • single output
  • output: 192 to 241,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 244,2x68x38,8mm
  • weight: 1300g
> More
Data Sheet
Showing 1 - 9 of 9 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    HLG-240H-12B
    53,69 €
    36570 HLG-240H-12B HLG-240H-12B
    53,69 €
    Quantity Unit price
    50 + 52,29 €
    Stock: 492
  • Mean Well
    HLG-240H-15B, Mean Well LED drivers, 240W, IP67, CV and CC mixed mode, dimmable, HLG-240H series
    63,19 €
    244659 HLG-240H-15B HLG-240H-15B
    63,19 €
    Stock: 0
  • Mean Well
    HLG-240H-20B, Mean Well LED drivers, 240W, IP67, CV and CC mixed mode, dimmable, HLG-240H series
    63,19 €
    244662 HLG-240H-20B HLG-240H-20B
    63,19 €
    Stock: 0
  • Mean Well
    HLG-240H-24B
    53,69 €
    36573 HLG-240H-24B HLG-240H-24B
    53,69 €
    Quantity Unit price
    50 + 52,29 €
    Stock: 1133
  • Mean Well
    HLG-240H-30B, Mean Well LED drivers, 240W, IP67, CV and CC mixed mode, dimmable, HLG-240H series
    63,19 €
    244665 HLG-240H-30B HLG-240H-30B
    63,19 €
    Stock: 0
  • Mean Well
    HLG-240H-36B
    60,49 €
    41269 HLG-240H-36B HLG-240H-36B
    60,49 €
    Quantity Unit price
    50 + 58,49 €
    Stock: 0
  • Mean Well
    HLG-240H-42B, Mean Well LED drivers, 240W, IP67, dimmable, HLG-240H_B series
    63,39 €
    135846 HLG-240H-42B HLG-240H-42B
    63,39 €
    Quantity Unit price
    50 + 61,99 €
    Stock: 25
  • Mean Well
    HLG-240H-48B
    56,09 €
    104616 HLG-240H-48B HLG-240H-48B
    56,09 €
    Quantity Unit price
    50 + 54,69 €
    Stock: 0
  • Mean Well
    HLG-240H-54B
    63,39 €
    104617 HLG-240H-54B HLG-240H-54B
    63,39 €
    Quantity Unit price
    50 + 61,99 €
    Stock: 1
Showing 1 - 9 of 9 products
