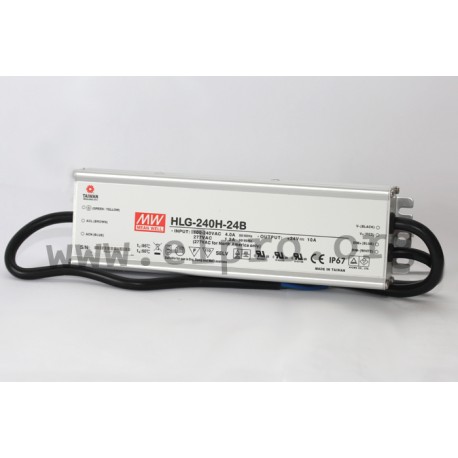

HLG-240H-24B

Mean Well LED driver series HLG-240H

LED drivers in a metal housing (IP67) with a power output of 240W and constant current / constant voltage. These devices comply with SELV regulations and include an active PFC function as well as protection against overload (with auto recovery), overtemperature, overvoltage and short circuits. They are suitable for use in LED lighting applications that require lead-out control for dimming purposes while adhering to EN61347-1, EN61347-2-13,and EN50155 standards along with those set by EN61000-3-2 Class C or higher levels; additionally they meet the requirements specified under both the EN61000-3-3 standard as well as those outlined within the guidelines established by EN61547. We offer the following types of this Mean Well series: HLG-240H-12B, HLG-240H-15B, HLG-240H-20B, HLG-240H-24B, HLG-240H-30B, HLG-240H-36B, HLG-240H-42B, HLG-240H-48B and HLG-240H-54B.

  • single output
  • output: 192 to 241,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C

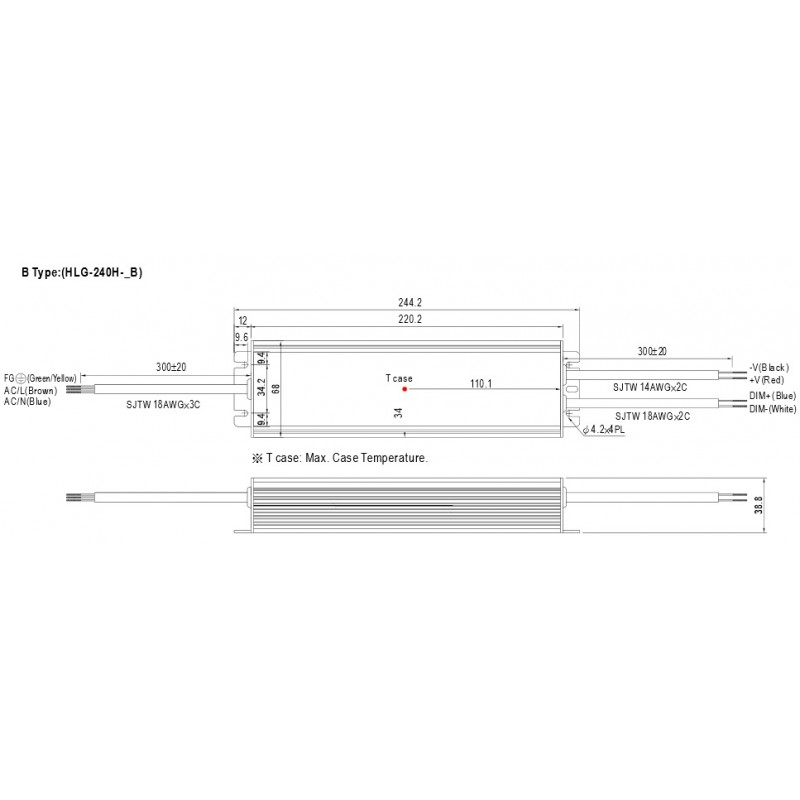

  • dimensions: 244,2x68x38,8mm
  • weight: 1300g
Meanwell HLG-240H series

HLG-240H-24B

36573 HLG-240H-24B HLG-240H-24B 4711287450544 Mean Well LED driver series HLG-240H. LED drivers in a metal housing (IP67) with a power output of 240W and constant current / constant voltage. These devices comply with SELV regulations and include an active PFC function as well as protection against overload (with auto recovery), overtemperature, overvoltage and short circuits. They are suitable for use in LED lighting applications that require lead-out control for dimming purposes while adhering to EN61347-1, EN61347-2-13,and EN50155 standards along with those set by EN61000-3-2 Class C or higher levels; additionally they meet the requirements specified under both the EN61000-3-3 standard as well as those outlined within the guidelines established by EN61547. We offer the following types of this Mean Well series: HLG-240H-12B, HLG-240H-15B, HLG-240H-20B, HLG-240H-24B, HLG-240H-30B, HLG-240H-36B, HLG-240H-42B, HLG-240H-48B and HLG-240H-54B. single output output: 192 to 241,2W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 244,2x68x38,8mm weight: 1300g

Specifications

manufacturer
Manufacturer's name HLG-240H-24B
GTIN 4711287450544
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 93
Output voltage tolerance: [%] 1
Output power [W] 240
Ripple [mVp-p] 150
Data Sheet

Unit price

51,49 €

Volume discounts

Quantity Unit price
50 + 50,19 €

Stock: 656
Next incoming goods:
CW 28/2024
1008 units

Further delivery:
CW 33/2024
