rated current: 8-16A

* low power consumption 400 mW
* safe separation between coil and contacts according to VDE0106, EN50178, EN60204 and EN60336
* 8mm, 6kV (1.2/50µs) isolation between coil and contacts
* protection class RTII (flux proof)
* contact...

rated current: 8-16A

* low power consumption 400 mW
* safe separation between coil and contacts according to VDE0106, EN50178, EN60204 and EN60336
* 8mm, 6kV (1.2/50µs) isolation between coil and contacts
* protection class RTII (flux proof)
* contact

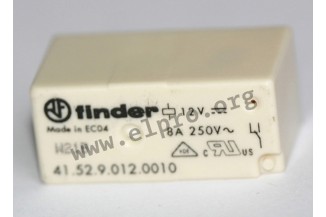

41.61_: SPDT
41.52_: DPDT
* contact material: AgNi
* rated current
41.61_: 16A
41.52 _: 8A
* max. switching current
41.61_: 30A
41.52 _: 15A
* max. switching voltage: 400V AC
* max. switching power
41.61_: 4000VA
41.52 _: 2000VA
* operate/release time: 5/4ms
* testing voltage
contact/contact: 4000V AC
opening contact: 1000V AC
* lifetime
mechanical: 30x106 operations
electrical 41.61_: 70x103 operations
electrical 41.52 _: 80x103 operations
* operating temperature: -40...+85°C

> More
Data Sheet
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Finder
    41.52 12 V
    4,89 €
    11883 41.52 12 V 41.52.9.012.0010 41.52.9.012.0010
    4,89 €
    Stock: 4
  • Finder
    41.52 24 V
    4,89 €
    11884 41.52 24 V 41.52.9.024.0010 41.52.9.024.0010
    4,89 €
    Stock: 584
  • Finder
    41.61 12 V
    4,09 €
    11885 41.61 12 V 41.61.9.012.0010 41.61.9.012.0010
    4,09 €
    Stock: 110
  • Finder
    41.61 24 V
    4,09 €
    11886 41.61 24 V 41.61.9.024.0010 41.61.9.024.0010
    4,09 €
    Stock: 200
Showing 1 - 4 of 4 products
