41.61 24 V

rated current: 8-16A

• low power consumption 400 mW
• safe separation between coil and contacts according to VDE0106, EN50178, EN60204 and EN60336
• 8mm, 6kV (1.2/50µs) isolation between coil and contacts
• protection class RTII (flux proof)

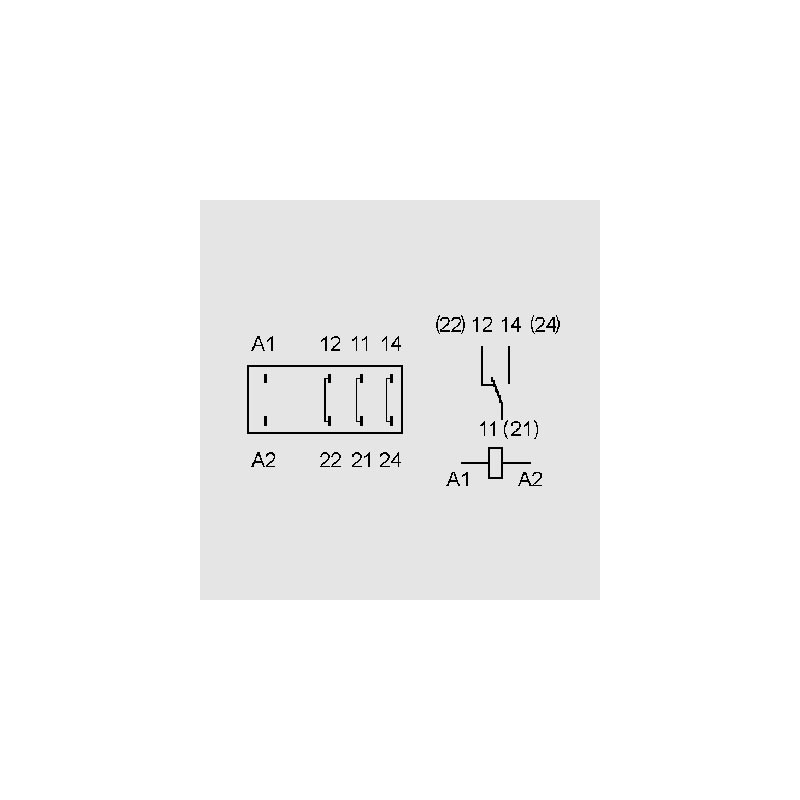

• contact: SPDT
• contact material: AgNi
• rated current: 16A
• max. switching current: 30A
• max. switching voltage: 400V AC
• max. switching power: 4000VA
• operate/release time: 5/4ms
• testing voltage
contact/contact: 4000V AC
opening contact: 1000V AC
• lifetime
mechanical: 30x106 operations
electrical 41.61_: 70x103 operations
electrical 41.52 _: 80x103 operations
• operating temperature: -40...+85°C

Finder series 41

41.61 24 V

11886 41.61 24 V 41.61.9.024.0010 41.61.9.024.0010 rated current: 8-16A. • low power consumption 400 mW• safe separation between coil and contacts according to VDE0106, EN50178, EN60204 and EN60336• 8mm, 6kV (1.2/50µs) isolation between coil and contacts• protection class RTII (flux proof)• contact: SPDT• contact material: AgNi• rated current: 16A• max. switching current: 30A• max. switching voltage: 400V AC• max. switching power: 4000VA• operate/release time: 5/4ms• testing voltagecontact/contact: 4000V ACopening contact: 1000V AC• lifetimemechanical: 30x106 operationselectrical 41.61_: 70x103 operationselectrical 41.52 _: 80x103 operations• operating temperature: -40...+85°C

Specifications

manufacturer
Manufacturer's name 41.61.9.024.0010
Response voltage [V] 16,8...36
Max. switching voltage [V] 250
Max. switching power [VA] 4000
Data Sheet

Unit price

4,09 €

Stock: 200
Next incoming goods:
CW 23/2024
40 units

Further delivery:
CW 32/2024

Minimum order quantity 10 units or
multiples of 10.
