rated current: 8A

* relay with forcibly guided contacts according to EN50205
* 4-pole safety relay
* category of protection RTIII (wash tight)
* contact
SR4 D 24V: 2 NO+2 NC
SR4 M 24V: 3 NO+1 NC
* contact material: AgSnO2
* rated current: 8A
* max. switc...

rated current: 8A

* relay with forcibly guided contacts according to EN50205
* 4-pole safety relay
* category of protection RTIII (wash tight)
* contact
SR4 D 24V: 2 NO+2 NC
SR4 M 24V: 3 NO+1 NC
* contact material: AgSnO2
* rated current: 8A
* max. switching voltage: 400V AC
* max. switching power: 2000VA
* creepage/clearance: 10/10mm
* testing voltage
coil/contact: 4000Vrms
contact/contact: 2500Vrms
opening contact: 1500Vrms
* lifetime
mechanical: 10x106 pperations
* operating temperature: -25...+70°C

> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • TE Connectivity

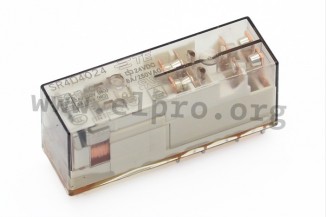

    4-1415053-1, TE Connectivity safety relays, 8A, 4-poles, Schrack, SR4 series
    12,69 €
    12033 SR4 M 24V 4-1415053-1 4-1415053-1
    12,69 €
    Stock: 658
  • TE Connectivity
    3-1415055-1, TE Connectivity safety relays, 8A, 4-poles, Schrack, SR4 series
    12,99 €
    28819 SR4 D 24V 3-1415055-1 3-1415055-1
    12,99 €
    Stock: 233
