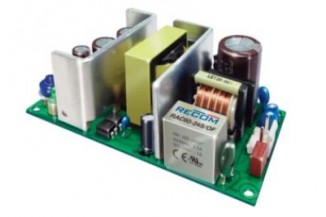

Recom power supply series RAC60

AC/DC converter modules in a compact 4"x2" housing (open frame) with 60W, a universal input, a low no-load power and a pin strip connection for nylon crimp terminals. These devices are protected against overload (au...

Recom power supply series RAC60

AC/DC converter modules in a compact 4"x2" housing (open frame) with 60W, a universal input, a low no-load power and a pin strip connection for nylon crimp terminals. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with UL/EN60950-1, EN55032 as well as EN55024. We offer the following types of this Recom series: RAC60-12S/OF and RAC60-15S/OF.

  • single output
  • output: 60W
  • input voltage: 90 to 265V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <0,75mA
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +50°C
  • weight: 145g
> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Recom
    RAC60-15S/OF
    26,09 €
    46309 RAC60-15S/OF RAC60-15S/OF
    26,09 €

    More
    Stock: 30
