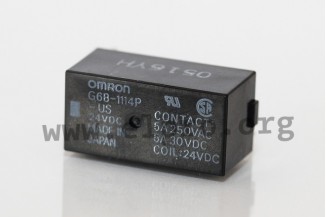

Omron PCB relays, 5A, 1 normally open contact, G6B series

• SPST-NO
• rated current: 5 A
• housing: 20x10x10 mm
* miniature PCB power relays
* high dielectric strength and high capacity
* high sensitive coil, 98 mW
* high insulation
* dielectric strength of 3000 V AC between coil and contacts
* 6 kV impu...

• SPST-NO
• rated current: 5 A
• housing: 20x10x10 mm
* miniature PCB power relays
* high dielectric strength and high capacity
* high sensitive coil, 98 mW
* high insulation
* dielectric strength of 3000 V AC between coil and contacts
* 6 kV impulse withstand voltage
• wash tight construction RTII
• for example to use for applications in building automation and security (temperature control and ventilation), at home (white goods for food preparation and preservation, gas and electric boilers), energy (smart meters, solar PV systems), healthcare and medical (ultrasound)
• contact material: Ag-alloy, Cd free
• max. switching voltage: 125 V DC, 380 V AC
• operate/release time: 10/10 ms
• testing voltage coil/contact, 1 min.: 3000 VRMS
• testing voltage contact/contact, 1 min.: 1000 VRMS
• mechanical lifetime, min.: 50x106 operations
• electrical lifetime, min.: 10x104 operations
• operating temperature: -25 to +70 °C
• weight: approx. 3,5 to 4,6 g
