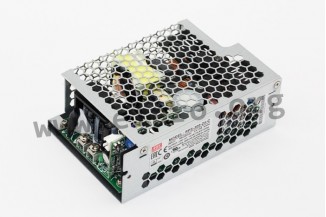

Mean Well power supplies series RPS-300

These supplies in enclosed case possessing a contact pin for nylon-crimp terminals have a universal input and are equipped with an overload protection by pulsing hiccup shutdown (auto recovery). In addition ...

Mean Well power supplies series RPS-300

These supplies in enclosed case possessing a contact pin for nylon-crimp terminals have a universal input and are equipped with an overload protection by pulsing hiccup shutdown (auto recovery). In addition to that they are protected against short circuit and overvoltage. They have an output of 200W with free air convection, 300W with 20.5cfm forced air and conform to EN60601-1. The supplies have a low no load power consumption (by PS-ON control) and a peak load capability. Their built-in auxiliary power is 12V/0.5A and their stand-by is 5V/0.6A. We are offering the following types by Meanwell: RPS-300-12-C, RPS-300-15-C, RPS-300-24-C, RPS-300-27-C and RPS-300-48-C.

* input voltage: 90 to 264V AC (47 to 63Hz) 127 to 370V DC
* input inrush current, max.: 80A
* leakage current
earth: <300µA
touch: <100µA
* output voltage adjustment: ±5%
* no load power consumption, max.: 0.5W
* overload protection: 105 to 135%
* withstand voltage
I/P-O/P: 4000V AC
I/P-FG: 2000V AC
O/P-FG: 1500V AC
* operating temperature: -30 to +70°C
* weight: 370g

> More
Download

Showing 1 - 5 of 5 items
  • article stock price volume discount
  • MeanWell
    Mean Well RPS-300 series
    59,70 €
    109157 RPS-300-12-C RPS-300-12-C
    59,70 €
    20 pcs. / 52,80 €
    stock: 193
  • MeanWell
    Mean Well RPS-300 series
    59,70 €
    109158 RPS-300-15-C RPS-300-15-C
    59,70 €
    20 pcs. / 52,80 €
    stock: 12
  • MeanWell
    RPS-300-24-C
    59,70 €
    109159 RPS-300-24-C RPS-300-24-C
    59,70 €
    20 pcs. / 52,80 €
    stock: 26
  • MeanWell
    Mean Well RPS-300 series
    59,70 €
    109160 RPS-300-27-C RPS-300-27-C
    59,70 €
    20 pcs. / 52,80 €
    stock: 42
  • MeanWell
    Mean Well RPS-300 series
    59,70 €
    109161 RPS-300-48-C RPS-300-48-C
    59,70 €
    20 pcs. / 52,80 €
    stock: 79
Showing 1 - 5 of 5 items
