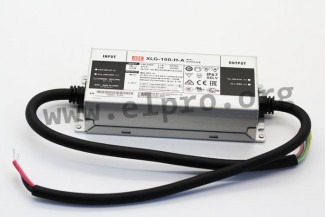

Mean Well LED power supply series XLG-100

LED switching power supplies in a metal housing (IP67) with a built-in PFC function, a low no load power consumption (<0,5W) and a wide input range of 100 to 305V DC. These SELV compliant devices (excep...

Mean Well LED power supply series XLG-100

LED switching power supplies in a metal housing (IP67) with a built-in PFC function, a low no load power consumption (<0,5W) and a wide input range of 100 to 305V DC. These SELV compliant devices (except L-type) are protected against short-circuit, overcurrent, overvoltage, overtemperature and overload through constant current limiting (auto recovery) and suited for LED lighting applications. They are in compliance with a surge immunity level of 6kV, with safety standards like EN61347-1, EN61347-2-13 and EN62384 as well as with EMC standards like EN55015, EN61000-3-2 Class C, EN61000-3-3 and EN61547. The output current of these power supplies is adjustable via a built-in potentiometer.

We offer the types XLG-100-12-A and XLG-100-24-A with constant current and constant voltage (mixed mode), the types XLG-100-L-A and XLG-100-H-A with constant power and the types XLG-100-L-AB and XLG-100-H-AB with constant power and a 3 in 1 dimming function (10V PWM, 0 to 10V DC and potentiometer).

  • single output
  • output: 96 to 100W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 4200V AC
  • withstand voltage I/P-FG: 2100V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 580g
> More
Download

Showing 1 - 6 of 6 items
  • article stock price volume discount
  • MeanWell
    Mean Well XLG-100 series
    22,70 €
    113405 XLG-100-12-A XLG-100-12-A
    22,70 €
    20 pcs. / 20,00 €
    stock: 615
  • MeanWell
    Mean Well XLG-100 series
    22,70 €
    113406 XLG-100-24-A XLG-100-24-A
    22,70 €
    20 pcs. / 20,00 €
    stock: 622
  • MeanWell
    Mean Well XLG-100 series
    22,70 €
    113409 XLG-100-L-A XLG-100-L-A
    22,70 €
    20 pcs. / 20,00 €
    stock: 48
  • MeanWell
    Mean Well XLG-100 series
    25,00 €
    113410 XLG-100-L-AB XLG-100-L-AB
    25,00 €
    20 pcs. / 22,10 €
    stock: 48
  • MeanWell
    Mean Well XLG-100 series
    22,70 €
    113407 XLG-100-H-A XLG-100-H-A
    22,70 €
    20 pcs. / 20,00 €
    stock: 48
  • MeanWell
    Mean Well XLG-100 series
    25,00 €
    113408 XLG-100-H-AB XLG-100-H-AB
    25,00 €
    20 pcs. / 22,10 €
    stock: 47
Showing 1 - 6 of 6 items
