Mean Well LED power supply series XLG-150

LED switching power supplies in a metal housing (IP67) with a wide input range of 100 to 305V AC, a built-in PFC function and a low no load power consumption (<0,5W). These devices are SELV compliant (e...

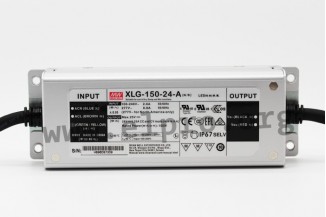

Mean Well LED power supply series XLG-150

LED switching power supplies in a metal housing (IP67) with a wide input range of 100 to 305V AC, a built-in PFC function and a low no load power consumption (<0,5W). These devices are SELV compliant (except L-type) and protected against overcurrent, overvoltage, overtemperature, short-circuit and overload through constant current limiting (auto recovery). Furthermore, they are in compliance with a surge immunity level of 6kV, with safety standards like EN61347-1, EN61347-2-13 and EN62384 as well as with EMC standards like EN55015, EN61000-3-2 Class C, EN61000-3-3 and EN61547. These power supplies are suited for LED lighting applications, the current is adjustable through a built-in potentiometer.

We offer the types XLG-150-12-A and XLG-150-24-A with constant voltage and current, the types XLG-150-L-A, XLG-150-M-A and XLG-150-H-A with constant power and the types XLG-150-L-AB, XLG-150-M-AB and XLG-150-H-AB with constant power and a built-in 3 in 1 dimming function (10V PWM, 0 to 10V DC and potentiometer).

  • single output
  • output: 150W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 4200V AC
  • withstand voltage I/P-FG: 2100V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 800g
> More
Download

Showing 1 - 8 of 8 items
  • article stock price volume discount
  • MeanWell
    Mean Well XLG-150 series
    27,10 €
    113411 XLG-150-12-A XLG-150-12-A
    27,10 €
    20 pcs. / 24,00 €
    stock: 780
  • MeanWell
    Mean Well XLG-150 series
    27,10 €
    113412 XLG-150-24-A XLG-150-24-A
    27,10 €
    20 pcs. / 24,00 €
    stock: 803
  • MeanWell
    Mean Well XLG-150 series
    27,10 €
    113415 XLG-150-L-A XLG-150-L-A
    27,10 €
    20 pcs. / 24,00 €
    stock: 9
  • MeanWell
    Mean Well XLG-150 series
    29,70 €
    113416 XLG-150-L-AB XLG-150-L-AB
    29,70 €
    20 pcs. / 26,30 €
    stock: 12
  • MeanWell
    Mean Well XLG-150 series
    27,10 €
    113417 XLG-150-M-A XLG-150-M-A
    27,10 €
    20 pcs. / 24,00 €
    stock: 5
  • MeanWell
    Mean Well XLG-150 series
    29,70 €
    113418 XLG-150-M-AB XLG-150-M-AB
    29,70 €
    20 pcs. / 26,30 €
    stock: 8
  • MeanWell
    Mean Well XLG-150 series
    27,10 €
    113413 XLG-150-H-A XLG-150-H-A
    27,10 €
    20 pcs. / 24,00 €
    stock: 10
  • MeanWell
    Mean Well XLG-150 series
    29,70 €
    113414 XLG-150-H-AB XLG-150-H-AB
    29,70 €
    20 pcs. / 26,30 €
    stock: 13
Showing 1 - 8 of 8 items
