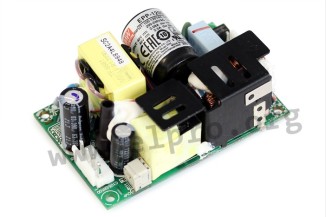

Mean Well LED power supply series EPP-120S

120W open-frame LED switching power supplies with a compact case (3"x2"), a universal input, contact pins for nylon-crimp terminals and low no load power consumption. These devices are suited for an opera...

Mean Well LED power supply series EPP-120S

120W open-frame LED switching power supplies with a compact case (3"x2"), a universal input, contact pins for nylon-crimp terminals and low no load power consumption. These devices are suited for an operating altitude of up to 5000m and are protected against short-circuit, overvoltage and overtemperature and overload through pulsing hiccup shutdown (auto recovery). Furthermore, they are in compliance with safety standards like EN62368-1 and EMC standards EN61000-3-2 and EN61000-3-3. We offer the types EPP-120S-12, EPP-120S-15, EPP-120S-24, EPP-120S-27 and EPP-120S-48 of this series.

  • single output
  • output: 120W
  • input voltage: 113 to 370V DC, 80 to 264V AC (47 to 63Hz)
  • maximal leakage current: <0,75mA
  • maximal input inrush current: 60A
  • overload protection: 130 to 160%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +85°C
  • weight: 130g
> More
Download

Showing 1 - 5 of 5 items
  • article stock price volume discount
  • MeanWell
    Mean Well EPP-120S series
    24,60 €
    114187 EPP-120S-12 EPP-120S-12
    24,60 €
    20 pcs. / 21,80 €
    stock: 42
  • MeanWell
    Mean Well EPP-120S series
    24,60 €
    114188 EPP-120S-15 EPP-120S-15
    24,60 €
    20 pcs. / 21,80 €
    stock: 17
  • MeanWell
    Mean Well EPP-120S series
    24,60 €
    114189 EPP-120S-24 EPP-120S-24
    24,60 €
    20 pcs. / 21,80 €
    stock: 69
  • MeanWell
    Mean Well EPP-120S series
    24,60 €
    114190 EPP-120S-27 EPP-120S-27
    24,60 €
    20 pcs. / 21,80 €
    stock: 13
  • MeanWell
    Mean Well EPP-120S series
    24,60 €
    114191 EPP-120S-48 EPP-120S-48
    24,60 €
    20 pcs. / 21,80 €
    stock: 7
Showing 1 - 5 of 5 items
