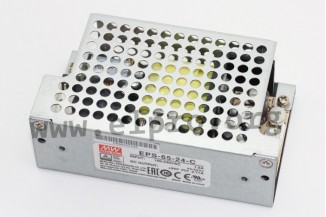

Mean Well power supply series EPS-65

Switching power supplies in a compact case (4"x2") with 65W, a low no load power consumption and a universal input. These devices are suited for an operating altitude of up to 4000m and are protected against sh...

Mean Well power supply series EPS-65

Switching power supplies in a compact case (4"x2") with 65W, a low no load power consumption and a universal input. These devices are suited for an operating altitude of up to 4000m and are protected against short circuit, overload (auto recovery) as well as overvoltage. They have a contact pin for nylon-crimp terminals and comply with EN62368-1, EN55032 class B and EN61000-3-2. We offer the following types of this Mean Well series: EPS-65-3.3-C, EPS-65-5-C, EPS-65-12-C, EPS-65-24-C, EPS-65-36-C and EPS-65-48-C.

  • single output
  • output: 36,3 to 65,28W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • maximal leakage current: 2mA
  • overload protection: 115 to 160%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 300g
> More
Download

Showing 1 - 6 of 6 items
  • article stock price volume discount
  • Mean Well
    EPS-65-3.3-C, Mean Well switching power supplies enclosed, 65W, PCB type, EPS-65C series
    15,30 €
    123967 EPS-65-3.3-C EPS-65-3.3-C
    15,30 €
    20 pcs. / 13,50 €
    stock: 15
  • Mean Well
    EPS-65-5-C, Mean Well switching power supplies enclosed, 65W, PCB type, EPS-65C series
    15,30 €
    123968 EPS-65-5-C EPS-65-5-C
    15,30 €
    20 pcs. / 13,50 €
    stock: 45
  • Mean Well
    EPS-65-12-C, Mean Well switching power supplies enclosed, 65W, PCB type, EPS-65C series
    15,30 €
    123969 EPS-65-12-C EPS-65-12-C
    15,30 €
    20 pcs. / 13,50 €
    stock: 45
  • Mean Well
    EPS-65-24-C, Mean Well switching power supplies enclosed, 65W, PCB type, EPS-65C series
    15,30 €
    123970 EPS-65-24-C EPS-65-24-C
    15,30 €
    20 pcs. / 13,50 €
    stock: 45
  • Mean Well
    EPS-65-36-C, Mean Well switching power supplies enclosed, 65W, PCB type, EPS-65C series
    15,30 €
    123971 EPS-65-36-C EPS-65-36-C
    15,30 €
    20 pcs. / 13,50 €
    stock: 45
  • Mean Well
    EPS-65-48-C, Mean Well switching power supplies enclosed, 65W, PCB type, EPS-65C series
    15,30 €
    123972 EPS-65-48-C EPS-65-48-C
    15,30 €
    20 pcs. / 13,50 €
    stock: 15
Showing 1 - 6 of 6 items
