Mean Well power supply series RPSG-160

Switching power supplies in an open frame housing with 110W convection resp. 160W with forced air (20,5cfm), a universal input, a peak load function and a pin strip connection for nylon crimp terminals. These...

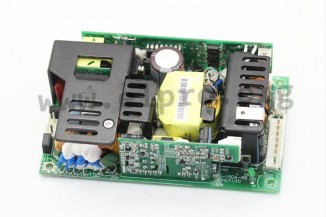

Mean Well power supply series RPSG-160

Switching power supplies in an open frame housing with 110W convection resp. 160W with forced air (20,5cfm), a universal input, a peak load function and a pin strip connection for nylon crimp terminals. These devices have a standby output (5V/0,8A), are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They have a very low no-load power consumption (<0,5W) and comply with EN60601-1 as well as EN55011 class B. We offer the following types of this Mean Well series: RPSG-160-5, RPSG-160-12, RPSG-160-15, RPSG-160-24 and RPSG-160-48.

  • single output
  • output: 110W convection, 160W with forced air
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • leakage current (earth): <160μA
  • leakage current (touch): <100μA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -20 to +70°C
  • weight: 320g
> More
Data Sheet
Showing 1 - 5 of 5 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    RPSG-160-5, Mean Well switching power supplies, 160W (forced air), 5V standby output, for medical technology, RPS-160 series
    44,59 €
    135895 RPSG-160-5 RPSG-160-5
    44,59 €
    Quantity Unit price
    50 + 43,09 €
    Stock: 42
  • Mean Well
    RPSG-160-12, Mean Well switching power supplies, 160W (forced air), 5V standby output, for medical technology, RPS-160 series
    44,59 €
    135896 RPSG-160-12 RPSG-160-12
    44,59 €
    Quantity Unit price
    50 + 43,09 €
    Stock: 46
  • Mean Well
    RPSG-160-15, Mean Well switching power supplies, 160W (forced air), 5V standby output, for medical technology, RPS-160 series
    44,59 €
    135897 RPSG-160-15 RPSG-160-15
    44,59 €
    Quantity Unit price
    50 + 43,09 €
    Stock: 36
  • Mean Well
    RPSG-160-24, Mean Well switching power supplies, 160W (forced air), 5V standby output, for medical technology, RPS-160 series
    44,59 €
    135898 RPSG-160-24 RPSG-160-24
    44,59 €
    Quantity Unit price
    50 + 43,09 €
    Stock: 36
  • Mean Well
    RPSG-160-48, Mean Well switching power supplies, 160W (forced air), 5V standby output, for medical technology, RPS-160 series
    44,59 €
    135899 RPSG-160-48 RPSG-160-48
    44,59 €
    Quantity Unit price
    50 + 43,09 €
    Stock: 34
Showing 1 - 5 of 5 products
