Bicker Elektronik uninterruptible power supply series UPSIC

Uninterruptible power supplies in a DIN rail housing (UPSIC-_D) or an open-frame type (UPSIC_) with a built-in energy storage in the form of maintenance-free supercaps, a power fail signa...

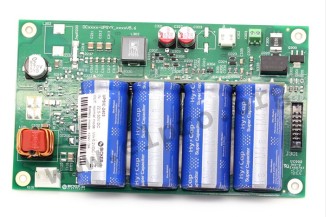

Bicker Elektronik uninterruptible power supply series UPSIC

Uninterruptible power supplies in a DIN rail housing (UPSIC-_D) or an open-frame type (UPSIC_) with a built-in energy storage in the form of maintenance-free supercaps, a power fail signal through a relay contact and a COM interface (RS232/I2C) as well as an LED indicator for the charging status of the capacitors. These devices are suitable for a 24/7 continuous operation, have a fanless design, a regulated voltage during backup operation and an integrated reboot function (UPSIC-_D). They are protected against voltage reversal and overcurrent and have an intelligent distribution of the charging currents. We offer the following types of this Bicker Elektronik series:  UPSIC-1205, UPSIC-2403, UPSIC-1205D and UPSIC-2403D.

  • output: 60 to 72W
  • charging method: CC/CV
  • charging cycles: >500.000
  • charging time: 60 sec at max. charging current
  • storage type: 4x100F supercaps
  • operating temperature: -20 to +70°C
  • dimensions UPSIC_: 135x795x35mm
  • dimensions UPSIC-_D: 36x103x147mm
  • weight UPSIC_: 0,17kg
  • weight UPSIC-_D: 0,367kg
> More
Showing 1 - 4 of 4 items
  • article stock price volume discount
  • Bicker Elektronik
    UPSIC-1205, Bicker Elektronik uninterruptible power supplies UPS, 12 to 24V, with supercaps, UPSIC series
    159,89 €
    233954 UPSIC-1205 UPSIC-1205
    159,89 €
    stock: 7
  • Bicker Elektronik
    UPSIC-2403, Bicker Elektronik uninterruptible power supplies UPS, 12 to 24V, with supercaps, UPSIC series
    159,89 €
    233956 UPSIC-2403 UPSIC-2403
    159,89 €
    stock: 9
  • Bicker Elektronik
    UPSIC-1205D, Bicker Elektronik uninterruptible power supplies UPS, 12 to 24V, with supercaps, UPSIC series
    226,09 €
    233955 UPSIC-1205D UPSIC-1205D
    226,09 €
    stock: 7
  • Bicker Elektronik
    UPSIC-2403D, Bicker Elektronik uninterruptible power supplies UPS, 12 to 24V, with supercaps, UPSIC series
    226,09 €
    233957 UPSIC-2403D UPSIC-2403D
    226,09 €
    stock: 8
Showing 1 - 4 of 4 items
