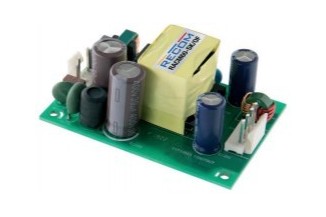

Recom power supply series RACM60-K/OF

Open frame switching power supplies in a compact housing (2"x3") with 60W and a universal input. These devices have an integrated EMC filter (class B) and are protected against short circuit, overload (hiccup ...

Recom power supply series RACM60-K/OF

Open frame switching power supplies in a compact housing (2"x3") with 60W and a universal input. These devices have an integrated EMC filter (class B) and are protected against short circuit, overload (hiccup mode) as well as overvoltage. They are suitable for medical technology applications (2xMOPP/250V AC) and comply with EN60601-1-2 class B, EN61000-4-2 as well as EN55032 class B. We offer the types RACM60-12SK/OF and RACM60-24SK/OF of this Recom series.

  • single output
  • output: 60W
  • input voltage: 80 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 60A
  • no-load power consumption: 0,1W
  • overload protection: 105 bis 120%
  • withstand voltage I/P-O/P: 4000V AC
  • operating temperature: -40 to +85°C
  • maximal operating altitude: 4000m
  • dimensions: 78,4x53x31,5mm
  • weight: 11g
> More
Data Sheet
