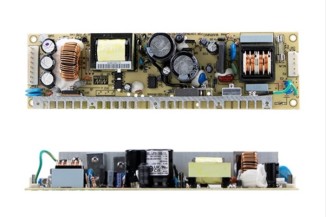

Mean Well power supply series LPS-100

Open frame switching power supplies with 100W, a universal input and contact pins. These devices have a built-in active PFC function and a fixed switching frequency at 134kHz. They are protected against overlo...

Mean Well power supply series LPS-100

Open frame switching power supplies with 100W, a universal input and contact pins. These devices have a built-in active PFC function and a fixed switching frequency at 134kHz. They are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN60950-1 as well as EN55032 class B. We offer the following types of this Mean Well series: LPS-100-3.3, LPS-100-5, LPS-100-7.5, LPS-100-12, LPS-100-13.5, LPS-100-15, LPS-100-24, LPS-100-27 and LPS-100-48.

  • single output
  • output: 66 to 102,6W
  • input voltage: 88 to 132V AC (47 to 63Hz), 176 to 264V DC
  • maximal input inrush current: 30A
  • leakage current: <1mA
  • overload protection: 105 to 140%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 450g
> More
Data Sheet
