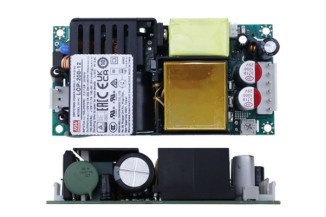

Mean Well power supply series LOP-200

Open frame switching power supplies with 200W (forced air), a compact size (4"x2"), a low no-load power, an adjustable output voltage and protection class I/II. These devices have a peak load capability of 150...

Mean Well power supply series LOP-200

Open frame switching power supplies with 200W (forced air), a compact size (4"x2"), a low no-load power, an adjustable output voltage and protection class I/II. These devices have a peak load capability of 150%, a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They are suitable for medical technology applications (2xMOPP), have an auxiliary output for an external fan (12V/0,5A) and comply with EN62368-1, EN60335-1, EN61558-1, EN61558-2-16, EN60601-1 as well as EN55032 class A/B. We offer the following types of this Mean Well series: LOP-200-12, LOP-200-15, LOP-200-18, LOP-200-24, LOP-200-27, LOP-200-36, LOP-200-48 and LOP-200-54.

  • single output
  • output: 199,8 to 205,2W
  • input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
  • input current: 1A
  • maximal input inrush current: 80A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • dimensions: 101,6x50,8x25,4mm
  • weight: 210g
> More
Data Sheet
Showing 1 - 8 of 8 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    LOP-200-12, Mean Well switching power supplies, 200W (forced air), for medical technology, open frame (PCB), LOP-200 series
    32,89 €
    245038 LOP-200-12 LOP-200-12
    32,89 €
    Quantity Unit price
    50 + 30,59 €

    More
    Stock: 180
  • Mean Well
    LOP-200-15, Mean Well switching power supplies, 200W (forced air), for medical technology, open frame (PCB), LOP-200 series
    32,89 €
    245039 LOP-200-15 LOP-200-15
    32,89 €
    Quantity Unit price
    50 + 30,59 €

    More
    Stock: 36
  • Mean Well
    LOP-200-18, Mean Well switching power supplies, 200W (forced air), for medical technology, open frame (PCB), LOP-200 series
    32,89 €
    245040 LOP-200-18 LOP-200-18
    32,89 €
    Quantity Unit price
    50 + 30,59 €

    More
    Stock: 36
  • Mean Well
    LOP-200-24, Mean Well switching power supplies, 200W (forced air), for medical technology, open frame (PCB), LOP-200 series
    32,89 €
    245041 LOP-200-24 LOP-200-24
    32,89 €
    Quantity Unit price
    50 + 30,59 €

    More
    Stock: 330
  • Mean Well
    LOP-200-27, Mean Well switching power supplies, 200W (forced air), for medical technology, open frame (PCB), LOP-200 series
    32,89 €
    245042 LOP-200-27 LOP-200-27
    32,89 €
    Quantity Unit price
    50 + 30,59 €

    More
    Stock: 180
  • Mean Well
    LOP-200-36, Mean Well switching power supplies, 200W (forced air), for medical technology, open frame (PCB), LOP-200 series
    32,89 €
    245043 LOP-200-36 LOP-200-36
    32,89 €
    Quantity Unit price
    50 + 30,59 €

    More
    Stock: 36
  • Mean Well
    LOP-200-48, Mean Well switching power supplies, 200W (forced air), for medical technology, open frame (PCB), LOP-200 series
    32,89 €
    245044 LOP-200-48 LOP-200-48
    32,89 €
    Quantity Unit price
    50 + 30,59 €

    More
    Stock: 180
  • Mean Well
    LOP-200-54, Mean Well switching power supplies, 200W (forced air), for medical technology, open frame (PCB), LOP-200 series
    32,89 €
    245045 LOP-200-54 LOP-200-54
    32,89 €
    Quantity Unit price
    50 + 30,59 €

    More
    Stock: 36
