Mean Well plug-in power supply series NGE30

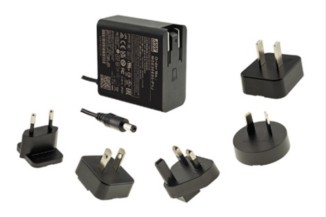

Plug-in switching power supplies in a plastic housing (IP21) with 30W, protection class II, an extremely low leakage current (<100µA), energy effieciency Level VI and a universal input. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, short circuit as well as overvoltage. They have interchangeable AC plugs (NGE30I_) resp. a Europlug (NGE30E_) and comply with EN60601-1, EN60335-1, EN61558-1, EN61558-2-16 as well as EN55032 class B. We offer the following types of this Mean Well series: NGE30E05-P1J, NGE30E09-P1J, NGE30E12-P1J, NGE30E18-P1J, NGE30E24-P1J, NGE30E48-P1J, NGE30I05-P1J, NGE30I09-P1J, NGE30I12-P1J, NGE30I15-P1J, NGE30I18-P1J, NGE30I24-P1J and NGE30I48-P1J.

single output
output: 20 to 30W
input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
maximal input inrush current: 70A
overload protection: 110 to 150%
withstand voltage I/P-O/P: 4000V AC
operating temperature: -30 to +70°C
dimensions: 62x30x65mm

Matching input plugs

> More

Data Sheet
