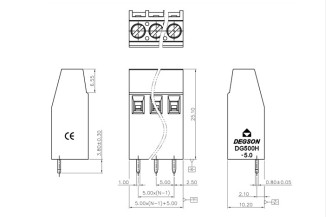

Degson terminal block series DG500H

Terminal blocks with 24A and a screw principle with wire guard. These clamps have a side wire entry and a pitch of 5mm. They are green and suitable for various applications. We offer the following types of this ...

Degson terminal block series DG500H

Terminal blocks with 24A and a screw principle with wire guard. These clamps have a side wire entry and a pitch of 5mm. They are green and suitable for various applications. We offer the following types of this Degson series: DG500H-5.0-25A-02P-14-00AH and DG500H-5.0-25A-03P-14-00AH.

  • number of poles: 2 to 3
  • pitch: 5mm
  • rated voltage: 250V
  • rated current: 24A
  • wire cross section: 2,5mm²
  • wire stripping length: 6 to 7mm
  • wire range: AWG28 to AWG12
  • operating temperature: -40 to +105°C
