> Passive elements>Terminals>DIN rail terminals>PTR terminal blocks, 4mm², for DIN rail, SR4 series

Manufacturers

DIN rail terminals

* for DIN rail TS35
* reliable connection of the conductor without any special preparation
* vibration-proof and gastight connections
* connect and disconnect of the conductor by using a screw-driver
* by PTR Messtechnik

SR 4
* colour...

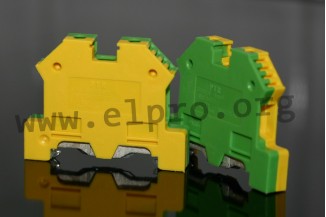

DIN rail terminals

* for DIN rail TS35
* reliable connection of the conductor without any special preparation
* vibration-proof and gastight connections
* connect and disconnect of the conductor by using a screw-driver
* by PTR Messtechnik

SR 4
* colour: beige or blue
* rated voltage UL, CSA: 600V
* rated voltage IEC 947-7-1: 800V
* rated current UL, CSA: 20A
* rated current IEC 947-7-1: 32A
* rated cross section solid wire: 0.2 to 6mm²
* rated cross section stranded wire: 0.2 to 4mm²
* dimensions: 48x6x52mm
* stripped length: 12mm
* tightening torque: 1Nm

SRSL 4-T35
* colour: green/yellow
* max. rated cross section, solid wire: 0.2 to 6mm²
* max. rated cross section, stranded wire: 0.2 to 4mm²
* dimension: 56x8x47mm
* stripped lenght: 12mm
* tightening torque: 1Nm

> More
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • PTR
    SR 4 beige
    0,406 €
    13911 SR 4 beige SR 4 BEIGE SR 4 BEIGE
    0,406 €

    More
    Stock: 354
  • PTR
    SR 4 blue
    0,504 €
    13912 SR 4 blau SR 4 BLAU SR 4 BLAU
    0,504 €

    More
    Stock: 122
  • PTR
    SRSL 4-T35
    1,32 €
    13914 SRSL 4-T35 SRSL 4-T35 GRUEN/GELB SRSL 4-T35 GRUEN/GELB
    1,32 €

    More
    Stock: 270
Showing 1 - 3 of 3 products
