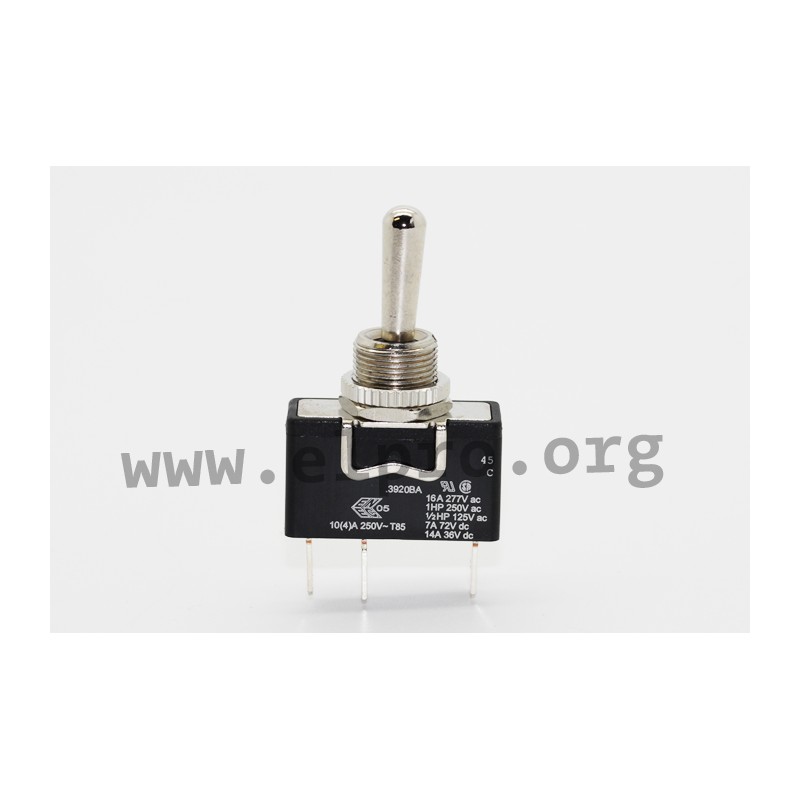

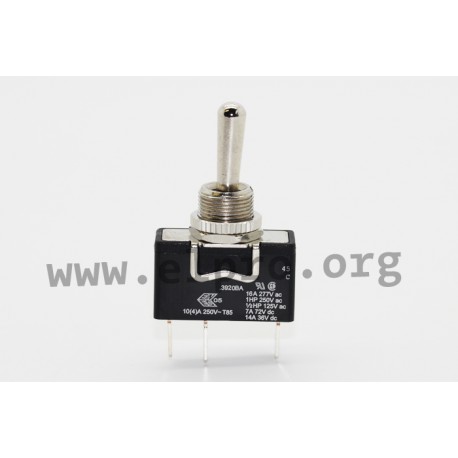

C3920BAAAA

for Ø12.7mm panel cutouts

• by Arcolectric
• for central attachment
• metal lever
• approved up to 250V/10A
• 1-pole
• operating voltage, max.: 250V AC
• switched current, max.: 10A
• switched current at inductive load, max.: 4A
• insulation resistance: <20MΩ
• contact resistance: <100MΩ
• contact opening: <3mm
• solder conditions (hand soldering): 350°C/6s
• body: nylon 6.6
• lever: brass, nickel-plated
• current carrying parts: Cu alloy
• contacts: silver-plated
• flammability: UL94V2

C3920BAAAA

107681 C3920BAAAA C3920BAAAA for Ø12.7mm panel cutouts. • by Arcolectric• for central attachment• metal lever• approved up to 250V/10A• 1-pole• operating voltage, max.: 250V AC• switched current, max.: 10A• switched current at inductive load, max.: 4A• insulation resistance: &lt;20MΩ• contact resistance: &lt;100MΩ• contact opening: &lt;3mm• solder conditions (hand soldering): 350°C/6s• body: nylon 6.6• lever: brass, nickel-plated• current carrying parts: Cu alloy• contacts: silver-plated• flammability: UL94V2

Specifications

manufacturer
Manufacturer's name C3920BAAAA
Switch positions ON - OFF - ON
Switching current [A] 10

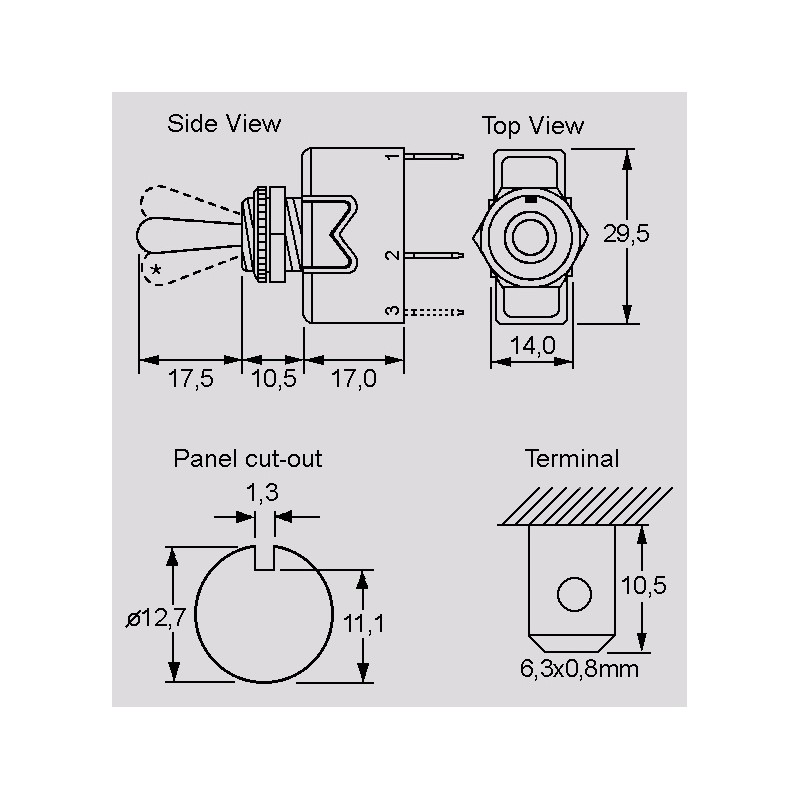

Panel cut-out [mm] Ø12,7
Data Sheet

Unit price

7,29 €

Stock: 18
Further delivery:
CW 28/2024

Minimum order quantity 1 to 3 units or multiples of 5 plus 0 to 3 .
