DS 00+5 L

Combi D-Sub plugs

• combination D-Sub plug connector for various applications

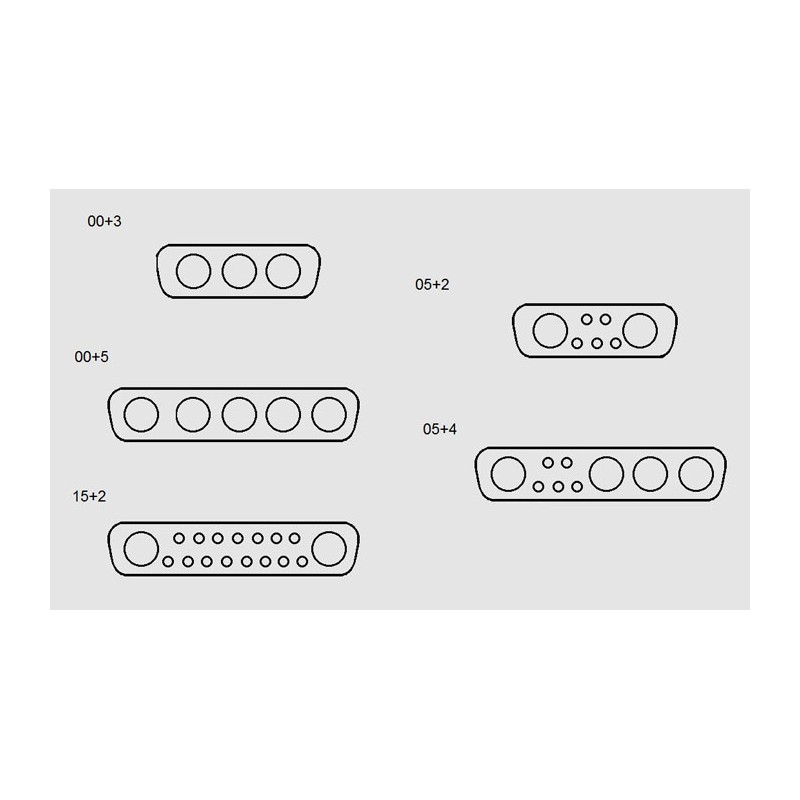

• within the D-Sub plug connector there are indented holes for special contacts such as signal, high current and coaxial contacts
• insulating shell: PBTP, Glass-filled, UL94V-0
• contacts: Cu-alloy
• contact surface: gold over nickel
• housing frame: steel, tin-plated
• operating temperature range: -55...+125°C

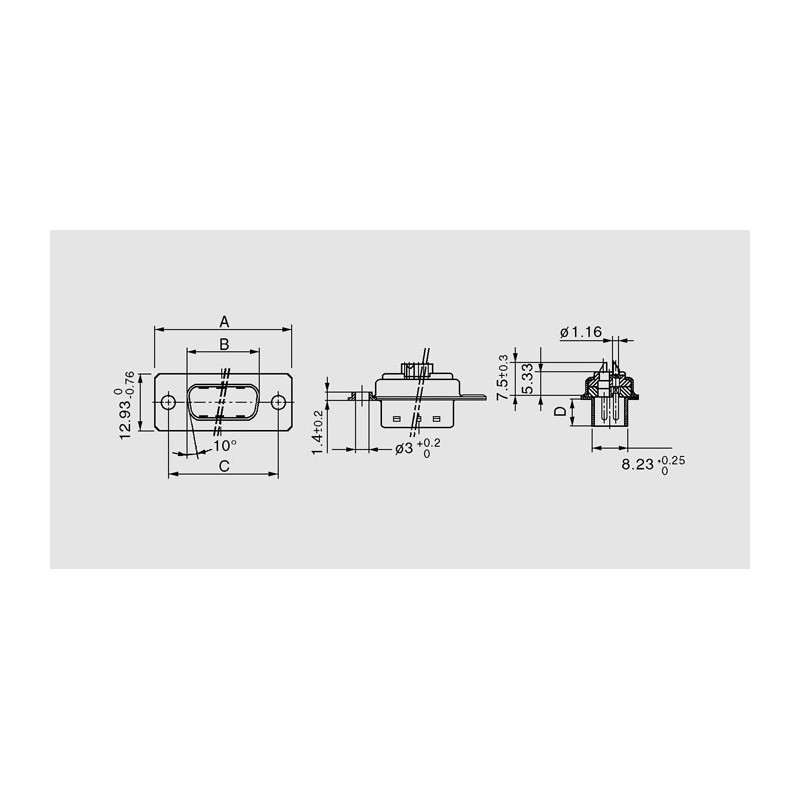

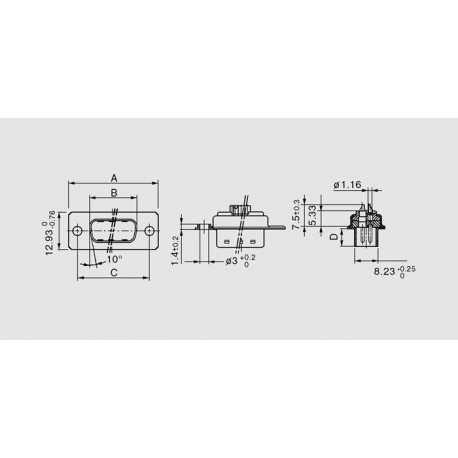

• dimensions: A=53.42mm, B=38.84mm, C=47.04mm, D=5.99mm

DS 00+5 L

28192 DS 00+5 L 3005W5PXX99A10X 3005W5PXX99A10X Combi D-Sub plugs. • combination D-Sub plug connector for various applications• within the D-Sub plug connector there are indented holes for special contacts such as signal, high current and coaxial contacts• insulating shell: PBTP, Glass-filled, UL94V-0• contacts: Cu-alloy• contact surface: gold over nickel• housing frame: steel, tin-plated• operating temperature range: -55...+125°C• dimensions: A=53.42mm, B=38.84mm, C=47.04mm, D=5.99mm

Data sheet

manufacturer
manufacturer's name 3005W5PXX99A10X

2,59 €

Volume discounts

5 pcs. / 0,952 €

stock: 53
