Combi D-Sub plugs

* combination D-Sub plug connector for various applications
* within the D-Sub plug connector there are indented holes for special contacts such as signal, high current and coaxial contacts
* insulating shell: PBTP, Glass-filled, U...

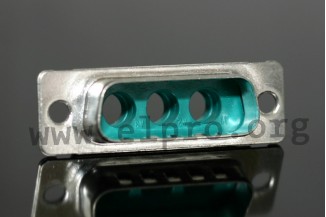

Combi D-Sub plugs

* combination D-Sub plug connector for various applications
* within the D-Sub plug connector there are indented holes for special contacts such as signal, high current and coaxial contacts
* insulating shell: PBTP, Glass-filled, UL94V-0
* contacts: Cu-alloy
* contact surface: gold over nickel
* housing frame: stel, tin-plated
* operating temperature range: -55...+125°C

dimensions
* DS 00+3 L and DS 05+2 L:
A=39.52mm, B=25.12mm, C=33.3mm, D=6.12mm
* DS 00+5 L, DS 05+4 L, DS 15+2 L:
A=53.42mm, B=38.84mm, C=47.04mm, D=5.99mm

high-current-contacts
* solder buckets
* contacts: Cu-alloy
* contact surface: gold over nickel
* clip: Cu-alloy

DS 20A L: Imax.= 20A ØA = 2.7 mm ,ØB = 2.7 mm
DS 40A L: Imax.= 40A ØA = 4.8 mm ,ØB = 4.8 mm




> More
Showing 1 - 8 of 8 products
  • Product Stock Unit price Volume discounts
  • Conec
    DS 00+3 L
    2,39 €
    28189 DS 00+3 L 3003W3PXX99A10X 3003W3PXX99A10X
    2,39 €
    Quantity Unit price
    5 + 0,882 €
    Stock: 189
  • Conec
    dimensions
    3,09 €
    28192 DS 00+5 L 3005W5PXX99A10X 3005W5PXX99A10X
    3,09 €
    Quantity Unit price
    5 + 1,13 €
    Stock: 248
  • Conec
    variations
    5,09 €
    28208 DS 05+2 L 3007W2PCM99A10X 3007W2PCM99A10X
    5,09 €
    Quantity Unit price
    5 + 1,86 €
    Stock: 375
  • Conec
    variations
    5,69 €
    28210 DS 05+4 L 3009W4PCM99A10X 3009W4PCM99A10X
    5,69 €
    Quantity Unit price
    5 + 2,09 €
    Stock: 626
  • Conec
    DS 15+2 L
    13,49 €
    28222 DS 15+2 L 3017W2PCM99A10X 3017W2PCM99A10X
    13,49 €
    Quantity Unit price
    5 + 4,99 €
    Stock: 3
  • Conec
     high current plugs by Conec
    3,19 €
    108836 DS 10A L 131C10019X 131C10019X
    3,19 €
    Quantity Unit price
    5 + 1,16 €
    Stock: 1080
  • Conec
    DS 20A L
    3,09 €
    28195 DS 20A L 131C10029X 131C10029X
    3,09 €
    Quantity Unit price
    5 + 1,11 €
    Stock: 455
  • Conec
    DS 40A L
    3,09 €
    28194 DS 40A L 131C10049X 131C10049X
    3,09 €
    Quantity Unit price
    5 + 1,12 €
    Stock: 811
Showing 1 - 8 of 8 products
