DS 15+2 L

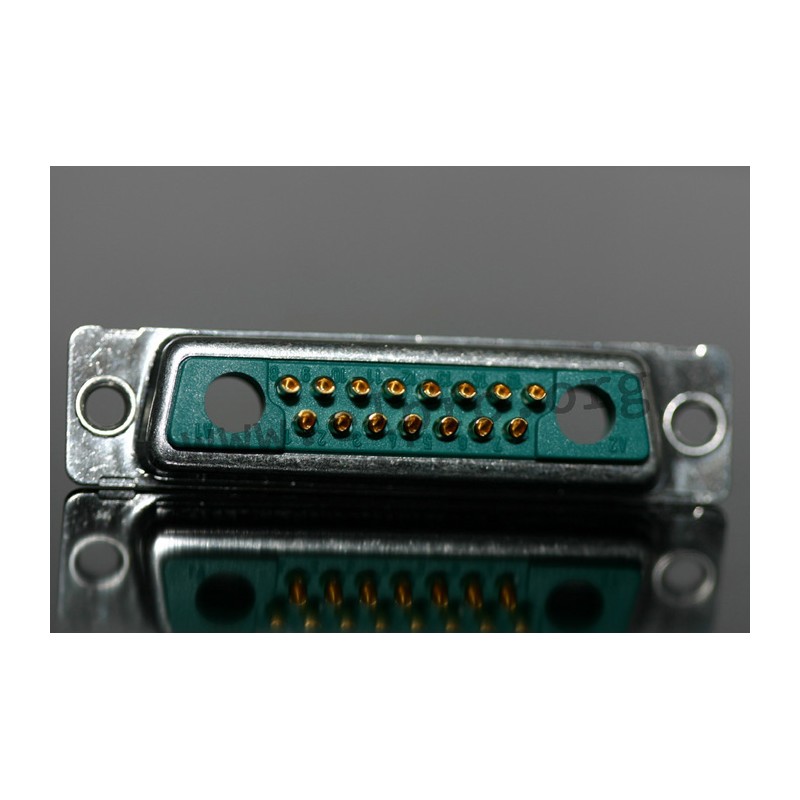

Combi D-Sub plugs

* combination D-Sub plug connector for various applications

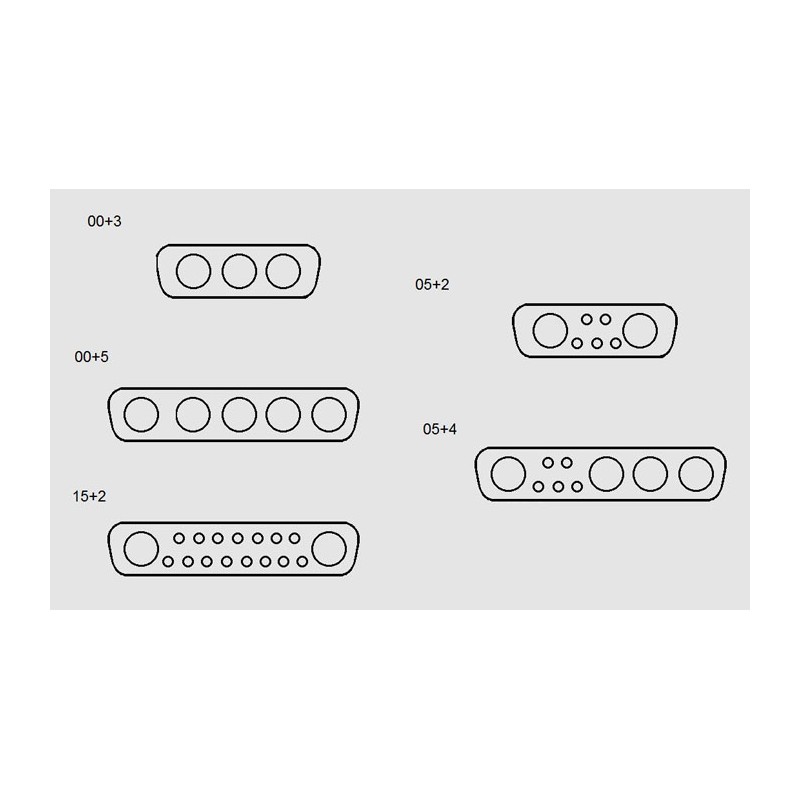

* within the D-Sub plug connector there are indented holes for special contacts such as signal, high current and coaxial contacts
* insulating shell: PBTP, Glass-filled, UL94V-0
* contacts: Cu-alloy
* contact surface: gold over nickel
* housing frame: stel, tin-plated
* operating temperature range: -55...+125°C

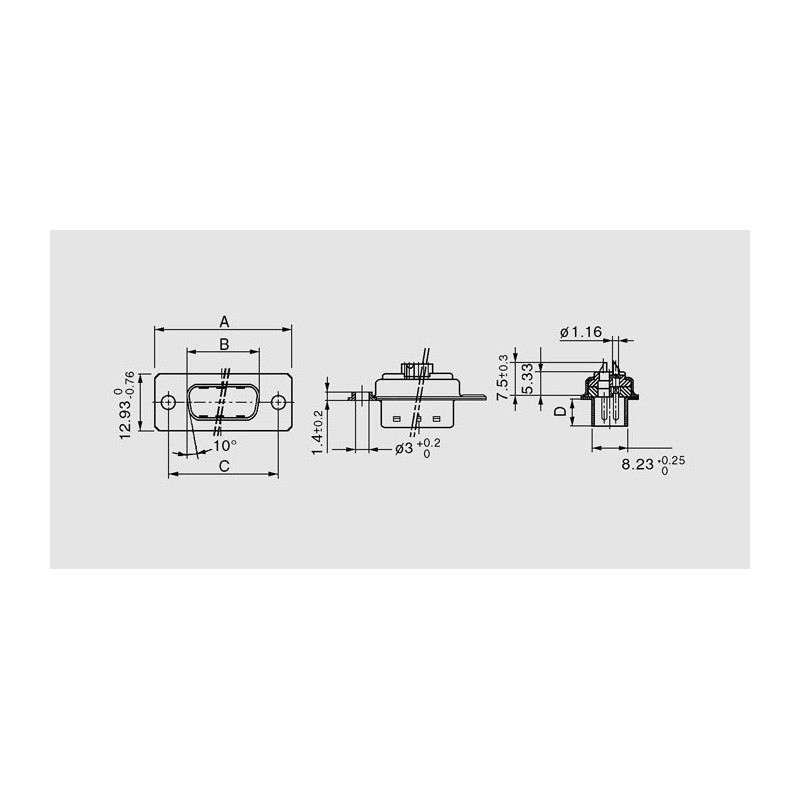

dimensions
* DS 00+3 L and DS 05+2 L:
A=39.52mm, B=25.12mm, C=33.3mm, D=6.12mm
* DS 00+5 L, DS 05+4 L, DS 15+2 L:
A=53.42mm, B=38.84mm, C=47.04mm, D=5.99mm

high-current-contacts
* solder buckets
* contacts: Cu-alloy
* contact surface: gold over nickel
* clip: Cu-alloy

DS 20A L: Imax.= 20A ØA = 2.7 mm ,ØB = 2.7 mm
DS 40A L: Imax.= 40A ØA = 4.8 mm ,ØB = 4.8 mm




S 15+2 L

DS 15+2 L

28222 DS 15+2 L 3017W2PCM99A10X 3017W2PCM99A10X Combi D-Sub plugs. * combination D-Sub plug connector for various applications* within the D-Sub plug connector there are indented holes for special contacts such as signal, high current and coaxial contacts* insulating shell: PBTP, Glass-filled, UL94V-0* contacts: Cu-alloy* contact surface: gold over nickel* housing frame: stel, tin-plated* operating temperature range: -55...+125°Cdimensions * DS 00+3 L and DS 05+2 L:A=39.52mm, B=25.12mm, C=33.3mm, D=6.12mm * DS 00+5 L, DS 05+4 L, DS 15+2 L:A=53.42mm, B=38.84mm, C=47.04mm, D=5.99mmhigh-current-contacts * solder buckets * contacts: Cu-alloy * contact surface: gold over nickel * clip: Cu-alloyDS 20A L: Imax.= 20A ØA = 2.7 mm ,ØB = 2.7 mmDS 40A L: Imax.= 40A ØA = 4.8 mm ,ØB = 4.8 mm

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 3017W2PCM99A10X
Data Sheet

Unit price

6,79 €

Stock: 3
Next incoming goods:
CW 28/2026
50 units

Minimum order quantity 1 to 3 units or multiples of 5 plus 0 to 3 .
