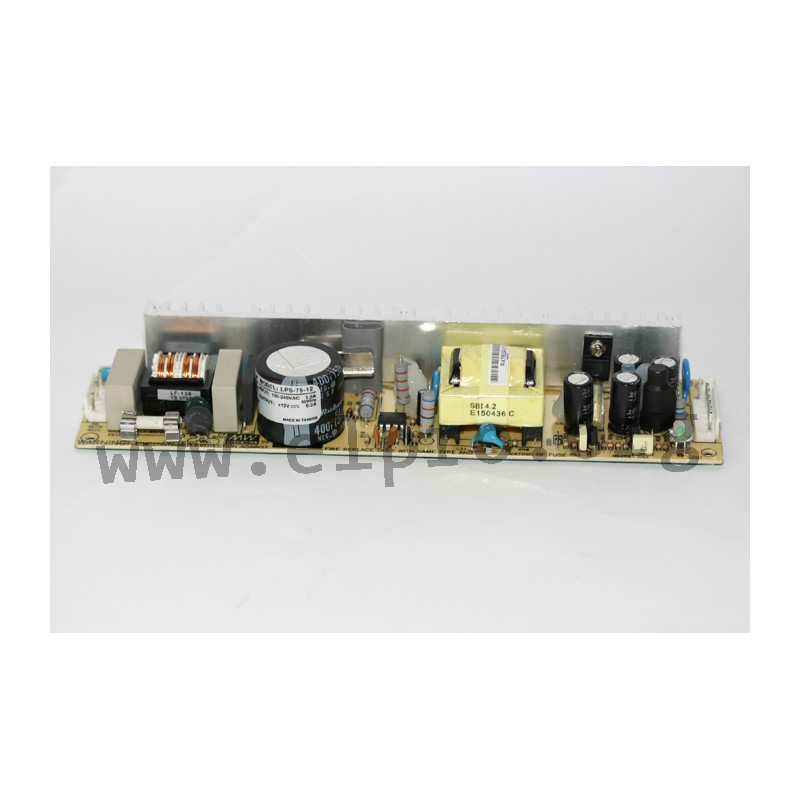

LPS-75-15

Mean Well power supply series LPS-75

Open frame type switching power supplies with 75W, a built-in remote ON/OFF control and a universal input. These devices have a pin strip connection for nylon crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: LPS-75-3.3, LPS-75-5, LPS-75-12, LPS-75-15, LPS-75-24 and LPS-75-48.

  • single output
  • output: 49,5 to 76,8W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 36A
  • leakage current: <1mA
  • output voltage adjustment: +10/-5%
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 300g

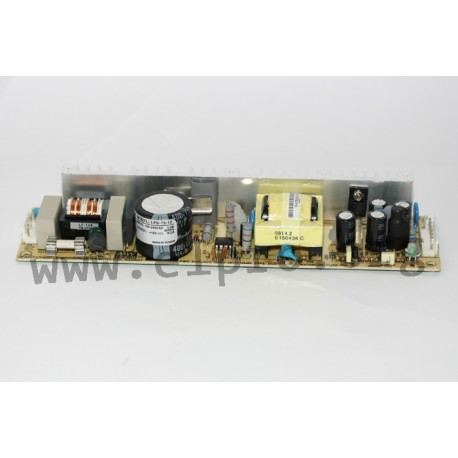

dimensions

LPS-75-15

30728 LPS-75-15 LPS-75-15 4711287425726 Mean Well power supply series&nbsp;LPS-75. Open frame type switching power supplies with 75W, a built-in remote ON/OFF control and a universal input. These devices have a pin strip connection for nylon crimp terminals and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and&nbsp;comply with&nbsp;UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;LPS-75-3.3, LPS-75-5, LPS-75-12, LPS-75-15, LPS-75-24 and LPS-75-48. single output output: 49,5 to 76,8W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 36A leakage current: &lt;1mA output voltage adjustment: +10/-5% overload protection: 115 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70&deg;C weight: 300g

Specifications

manufacturer
Manufacturer's name LPS-75-15
GTIN 4711287425726
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 81
Output current range [A] 0...5
Output voltage tolerance: [%] ±2
Output power [W] 75
Output rated current [A] 5
Ripple [mV] 100
Data Sheet

Unit price

16,69 €

Volume discounts

Quantity Unit price
50 + 15,59 €

Stock: 18
Further delivery:
CW 32/2024
